| CCD Camera | 1/3-inch High Sensitivity CCD |
| Effective pixels (HxV) | 752X582 (PAL) 768×494 (NTSC) |
| Horizontal Resolution | 700 TVL Sensor Resolution |
| Electronics Iris | 1/50 to 1/120,000 s (PAL) 1/60 to 1/120,000 s (NTSC) |
| Manual shutter | 1/50 (1/60), 1/100 (1/120), 1/250, 1/500, 1/700, 1/1K, 1/1.6k, 1/2.5K, 1/5K. 1/7K 1/10K, 1/30K, 1/60K, 1/120K |
| Output Signal | 1 VPP composite video, 75 ohm |
| Output connection | BNC connector |
| S/N Ratio | Greater than 50 dB |
| Gamma | 0.35, 0.45 (default), 0.6, 0.75 |
| Lens | 2.8 to 12 mm varifocal auto-iris with mechanical D/N filter |
| Sensitivity | 0 lx (infrared on) |
| LEDs | Intelligent 18-LED infrared array; max. 15 m (50 ft.) IR distance |
| Wavelength | 850 nm |
PRODUCT, กล้องวงจรปิด Bosch, กล้องวงจรปิด Bosch-Analog CCTV

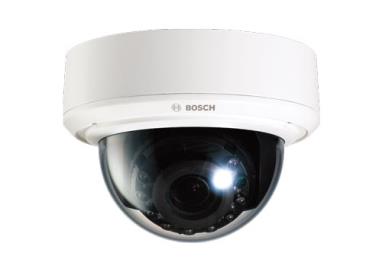

กล้องวงจรปิด Bosch Outdoor IR D/N Dome Camera
- Excellent resolution (700 TVL)
- Infrared for extra lighting
- Flexible viewing field
- Easy setup
- Secure all-weather installation
