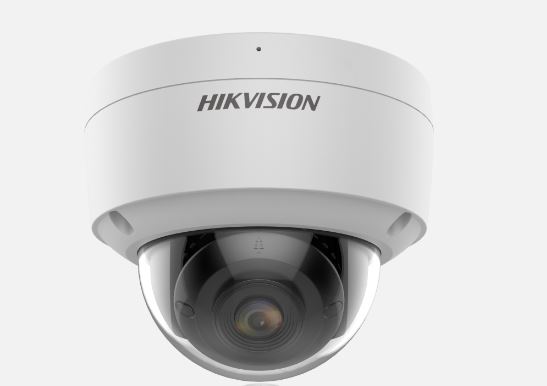

กล้องวงจรปิด-DS-2CD2147G2

Description

• Camera
• Image Sensor1/1.8″ Progressive Scan CMOS
• Shutter Speed1/3 s to 1/100,000 s
• Min. Illumination0.0005 Lux @ (F1.0, AGC ON)
• Slow ShutterYes
• P/NP/N
• Wide Dynamic Range130 dB
• Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

• Lens
• Lens Type2.8 mm, 4 mm
• Focal Length & FOV

  2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134°

  4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115°

• Lens MountM16
• ApertureF1.0
• Blue Glass ModuleBlue glass module to reduce ghost phenomenon
• Working Distance

  2.8 mm: 2.5 m to ∞

  4 mm: 3.5 m to ∞

• DORI
• DORI

  2.8 mm, D: 58 m, O: 23 m, R: 11 m, I: 2 m

  4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m

• Video
• Max. Resolution2688 × 1520
• Main Stream

  50Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)

• Third Stream

  50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  *Third stream is supported under certain settings.

• Video Compression

  Main stream: H.265/H.264/H.265+/H.264+

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264

  *Third stream is supported under certain settings.

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• H.264+Main Stream supports
• H.265+Main Stream supports
• Bit Rate ControlCBR/VBR
• Scalable Video Coding (SVC)H.265 and H.264 support
• Region Of Interest (ROI)1 fixed region for main stream and sub-stream

• Audio
• Environment Noise Filtering-SU: Yes
• Audio Sampling Rate-SU: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio Compression-SU: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate-SU: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)

• Network
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
• User/HostUp to 32 users. 3 user levels: administrator, operator and user
• SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage

  MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported

• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web Browser

  Plug-in required live view: IE 10+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+

• Image
• SNR≥ 52 dB
• Day/Night SwitchAuto, Schedule
• Image EnhancementBLC, HLC, 3D DNR
• Image Parameters SwitchYes
• Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC/TF card, up to 256 GB
• Built-In Microphone-SU: Yes
• Audio

  -SU: 1 input (line in), max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;

  1 output (line out), max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound

• Alarm-SU: 1 input, 1 output (TTL: max. 12 VDC, 30 mA)
• Hardware ResetYes

• Event
• Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception
• Smart EventScene change detection

• Deep Learning Function
• Face CaptureYes
• Perimeter ProtectionLine crossing detection, intrusion detection, region entrance detection, region exiting detection

• General
• Power

  12 VDC ± 25%

  PoE: 802.3af, Class 3

• Camera MaterialMetal
• Camera DimensionØ121.4 × 100.1 mm (Ø4.8″ × 3.9″)
• Package Dimension150 × 150 × 141 mm (5.9″ × 5.9″ ×5.6″)
• Camera WeightApprox. 580 g (1.2 lb.)
• With Package WeightApprox. 820 g (1.6 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F).Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F).Humidity 95% or less (non-condensing)
• Linkage Method

  Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, send email

  -SU：audible warning

• Firmware VersionV5.5.111
• Power Consumption And Current

  12 VDC, 0.4 A, max. 5 W

  PoE (802.3af, 36 V to 57 V), 0.20 A to 0.15 A, max. 6.5 W

• Power Supply

  12 VDC ± 25%

  PoE: 802.3af, Class 3

• Power InterfaceØ5.5 mm coaxial power plug
• Web Client Language

  33 languages

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• General FunctionAnti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via email, pixel counter
• Software ResetYes

• Approval
• ClassClass B
• EMC

  FCC SDoC (47 CFR Part 15, Subpart B);

  CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

  RCM (AS/NZS CISPR 32: 2015);

  IC VoC (ICES-003: Issue 6, 2016)

• Safety

  UL (UL 60950-1);

  CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

  CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014)

• EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• ProtectionIP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
