กล้องวงจรปิด-DS-2CD2321G0
กล้องวงจรปิด-DS-2CD2321G0

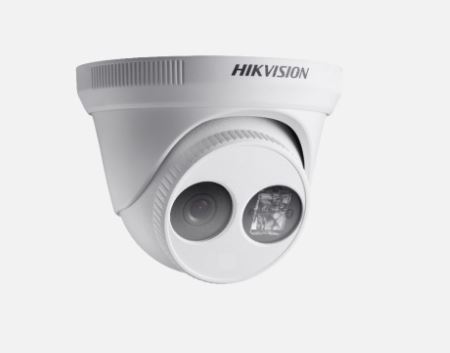

2 MP WDR Fixed Turret Network Camera
- High quality imaging with 2 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Water and dust resistant (IP67).
Description
- Camera
- Image Sensor1/2.8″ Progressive Scan CMOS
- Min. IlluminationColor: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @(F2.0, AGC ON); ,B/W: 0.001 Lux @(F1.2, AGC ON), 0.0028 Lux @(F2.0, AGC ON)
- Shutter Speed1/3 s to 1/100,000 s
- Slow ShutterYes
- Wide Dynamic RangeDWDR
- Day & NightIR Cut Filter
- Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
- Lens
- FocusFixed
- Lens Type2.8/4/6 mm
- FOV2.8 mm: horizontal FOV: 103°, vertical FOV: 62°, diagonal FOV: 118°,4 mm: horizontal FOV: 90°, vertical FOV: 48°, diagonal FOV: 109°,6 mm: horizontal FOV: 55°, vertical FOV: 31°, diagonal FOV: 62°
- ApertureF2.0
- Lens MountM12
- Aperture TypeFixed
- Illuminator
- IR RangeUp to 30 m
- Wavelength850nm
- Video
- Max. Resolution1920 × 1080
- Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Sub Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)
- Video CompressionMain stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- H.264+Main stream supports
- H.265+Main stream supports
- Region Of Interest (ROI)1 fixed region for main stream
- Network
- Simultaneous Live ViewUp to 6 channels
- APIONVIF (PROFILE S, PROFILE G), ISAPI
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
- User/HostUp to 32 users,3 levels: Administrator, Operator and User
- Network StorageNAS (NFS, SMB/CIFS)
- ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
- Web BrowserIE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
- Alarm TriggerMotion detection, video tampering, illegal login, HDD full, HDD error
- Image
- Day/Night SwitchDay/Night/Auto/Schedule
- DNR3D DNR
- Image EnhancementBLC, 3D DNR
- Image SettingsRotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
- Interface
- Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
- Event
- Smart EventLine crossing detection, intrusion detection
- General
- Firmware VersionV5.5.3
- General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Startup And Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
- Power Supply12 VDC ± 25%, ,PoE (802.3af, class 3)
- Power Consumption And CurrentPoE: (802.3af, 36V to 57V), 0.2 A to 0.1 A, max: 6.5W,12 VDC, 0.4 A, max. 5.0W
- Camera DimensionCamera: Φ 114.6 × 82.1 mm (Φ 4.5″ × 3.2″),With package: 150 × 150 × 141 mm (5.9″ × 5.9″ × 5.6″)
- Camera WeightCamera: approx. 400 g (0.9 lb.),With package: approx. 500 g (1.1 lb.)
