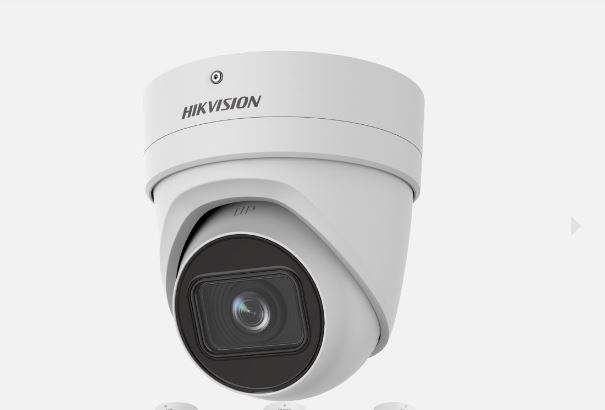

กล้องวงจรปิด-DS-2CD2H26G2

Description

• Camera
• Image Sensor1/2.8″ Progressive Scan CMOS
• Min. IlluminationColor: 0.002 Lux @ (F1.4, AGC ON)
• Day & NightICR Cut
• Shutter Speed1/3 s to 1/100,000 s
• Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 360°
• Slow ShutterYes
• P/NP/N
• Wide Dynamic Range120 dB
• Power-Off MemoryYes

• Lens
• FocusAuto
• Focal Length & FOV2.8 to 12 mm, horizontal FOV 113° to 33.9°, vertical FOV 58° to 18.9°, diagonal FOV 138° to 39°
• ApertureF1.4
• Lens MountØ14
• Iris TypeFixed

• Illuminator
• IR RangeUp to 40 m
• IR Wavelength850 nm
• Smart Supplement LightYes
• Supplement Light TypeIR

• Video
• Max. Resolution1920 × 1080
• Main Stream

  50Hz: 25 fps (1920 × 1080, 1280 × 720)

  60Hz: 30 fps (1920 × 1080, 1280 × 720)

• Sub-Stream

  50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)

  60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)

• Third Stream

  50Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)

  60Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)

• Video Compression

  Main stream: H.265/H.264/H.264+/H.265+

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseLine Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• H.264+Main Stream supports
• H.265+Main Stream supports
• Bit Rate ControlCBR/VBR
• Scalable Video Coding (SVC)

  Yes

• Region Of Interest (ROI)1 fixed region for main stream and sub-stream

• Audio
• Environment Noise FilteringYes
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate64Kbps(G.711 ulaw)/64Kbps(G.711 alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32 to 192Kbps(MP2L2)/ 8 to 320Kbps(MP3)/16 to 64Kbps(AAC)

• Network
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface（Profile S, Profile G), ISAPI, SDK
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
• User/HostUp to 32 users. 3 user levels: administrator, operator and user
• SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage

  MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported

• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web Browser

  Plug-in required live view: IE 10, IE 11

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+

• Image
• Day/Night SwitchDay, Night, Auto, Schedule
• Image EnhancementBLC, HLC, 3D DNR
• Image Parameters SwitchYes
• Image SettingsRotate, mirror, privacy masks, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• SNR≥ 52 dB

• Interface
• Alarm1 input, 1 output (max. 24 VDC/24 VAC @500 mA)
• Audio1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
• On-Board StorageBuilt-in micro SD slot, up to 256 GB
• Hardware ResetYes
• Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port

• Event
• Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart EventScene change detection

• Deep Learning Function
• Face CaptureYes
• Perimeter ProtectionLine crossing detection, intrusion detection, region entrance detection, region exiting detection

• General
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Power Supply

  12 VDC ± 25%, reverse polarity protection

  PoE: 802.3af, Class 3

• Power Consumption And Current

  12 VDC, 0.92 A, max. 11 W

  PoE: (802.3af, 36 V to 57 V), 0.35 A to 0.22 A, max. 12.5 W

• Power InterfaceTwo-core terminal block
• Camera DimensionØ135.8 × 145.5 mm (Ø5.4″ × 5.8″)
• Package Dimension170 × 170 × 205 mm (6.7″ × 6.7″ × 8.1″)
• Camera WeightApprox. 1160 g (2.6 lb.)
• With Package WeightApprox. 1515 g (3.3 lb.)
• Linkage MethodUpload to FTP/NAS/memory card, notify surveillance center, trigger record, trigger capture, send email, audible warning, trigger alarm output, trigger alarm input
• Firmware VersionV5.5.135
• Web Client Language

  33 languages

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• General FunctionAnti-flicker, heartbeat, password reset via e-mail, pixel counter
• Software ResetYes

• Approval
• EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
• EnvironmentCE-ROHS (2011/65/EU); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
• ProtectionIP66 (IEC 60529-2013), IK10 (IEC 62262:2002)
