HIKVISION, Hikvision Analog Camera, PRODUCTกล้องวงจรปิด-DS-2CE56D0T-IT3E

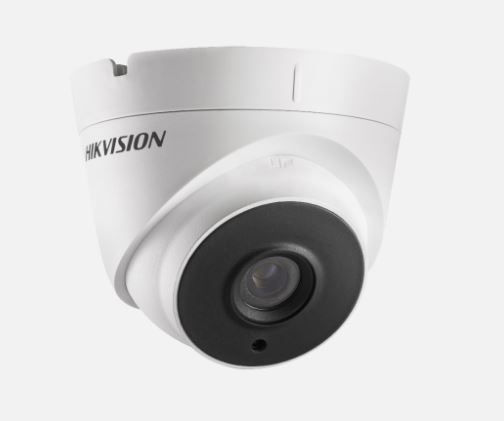

2 MP PoC Fixed Turret Camera
- 2 MP PoC turret camera
- EXIR 2.0: advanced infrared technology with 40 m IR distance
- Water and dust resistant (IP66)
- Transmits both HD video and power over the same coaxial cable
- Camera
- Image Sensor2.0 megapixel progressive scan CMOS
- Max. Resolution1920 (H) × 1080 (V)
- Min. Illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
- Shutter TimePAL: 1/25 s to 1/50, 000 s,NTSC: 1/30 s to 1/50, 000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360°
- Signal SystemPAL/NTSC
- Lens
- Lens Type2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
- Focal Length & FOV103.55° (2.8 mm), 82.63° (3.6 mm), 54.38° (6 mm), 37.96° (8 mm), 24.36° (12 mm)
- Lens MountM12
- Image
- Image SettingsBrightness, Sharpness, DNR, Mirror
- Frame RatePAL: 1080p@25fps,NTSC: 1080p@30fps
- Day/Night ModeSmart/color/BW(Black and White)
- Wide Dynamic Range (WDR)DWDR
- Image EnhancementBLC
- AGCLow/middle/high
- Interface
- Video OutputTVI only
- General
- MaterialFront cover: Mental ,Main Body: Plastic,Bracket: Metal
- Dimension86.7 mm × 81.6 mm × 226 mm(3.4″ × 3.2″ × 8.9″)
- Approx. 430 g (0.95 lb.)
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
- LanguageEnglish, Chinese
- Power Supply12 VDC ± 30%/PoC.af
- ConsumptionMax. 4.5 W
- IR RangeUp to 40 m
