HIKVISION, Hikvision Analog Camera, PRODUCTกล้องวงจรปิด-DS-2CE56D8T-IT1E

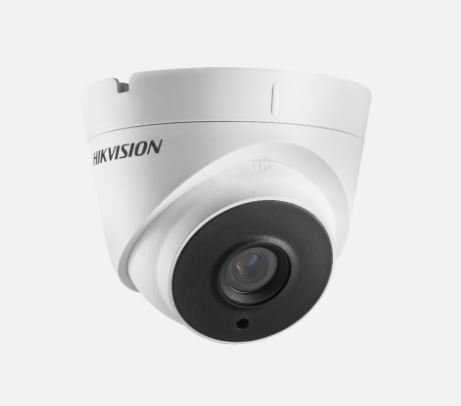

2 MP Ultra Low Light PoC Fixed Turret Camera
- 2 MP high performance turret camera
- Strong night performance, capturing images in ultra-low light down to 0.003 lux
- Clear imaging even against strong back lighting due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- EXIR 2.0: advanced infrared technology with 30 m IR distance
- Water and dust resistant (IP67)
- Transmits both HD video and power over the same coaxial cable
- Camera
- Image Sensor2.0 megapixel progressive scan CMOS
- Max. Resolution1920 (H) × 1080 (V)
- Min. IlluminationColor: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter TimePAL: 1/25 s to 1/50, 000 s,NTSC: 1/30 s to 1/50, 000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°
- Signal SystemPAL/NTSC
- Slow ShutterMax.: 16 times
- Lens
- Lens Type2.8 mm, 3.6 mm, 6 mm fixed focal lens
- Focal Length & FOV103.5° (2.8 mm), 82.6° (3.6 mm), 54.4° (6 mm)
- Lens MountM12
- Image
- Image SettingsBrightness, Sharpness, Mirror, Smart IR
- Frame RatePAL: 1080p@25fps,NTSC: 1080p@30fps
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)> 120 dB
- Image EnhancementWDR/BLC/OFF
- Privacy MaskON/OFF, 4 programmable privacy masks
- Noise ReductionLevel 1 to 10
- White BalanceATW/ MANUAL
- AGCSupport
- Interface
- Video OutputTVI only
- Event
- Motion Detection4 programmable motion areas
- General
- MaterialMetal & Plastic
- DimensionΦ 110 mm × 93.2 mm (Φ 4.33″ × 3.67″)
- 350 g (0.77 lb.)
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
- LanguageEnglish, Chinese
- Power Supply12 VDC ±25%/PoC.af
- ConsumptionMax. 3.2 W
- IR RangeUp to 30 m
