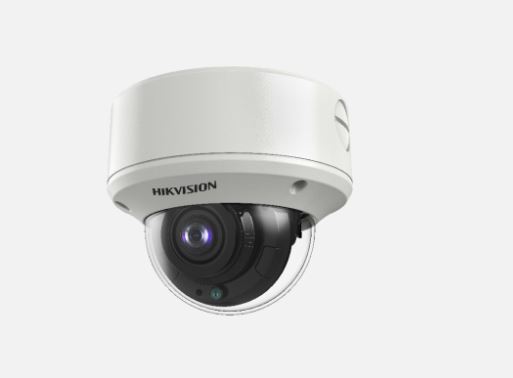

4K Vandal Motorized Varifocal Dome Camera
8 MP dome camera
Lens focuses automatically when zooming in or out
EXIR 2.0: advanced infrared technology with 60 m IR distance
Water and dust resistant (IP67) and vandal proof (IK10)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
camera Image Sensor 8.29 megapixel progressive scan CMOS Max. Resolution 3840 (H) × 2160 (V) Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR Shutter Time PAL: 1/12.5 s to 1/50, 000 s,NTSC: 1/15 s to 1/50, 000 s Day & Night IR cut filter Angle Adjustment Pan: 0° to 355°; Tilt: 0° to 75°; Rotate: 0° to 355°
Lens Lens Type 2.7 mm to 13.5 mm motorized vari-focal lens Focal Length & FOV 108.1° to 45.6° Lens Mount Φ14
Image Image Settings Brightness, Sharpness, DNR, Mirror, Smart IR, HLC Frame Rate TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps,,2MP@30fps,CVI: 8MP@12.5fps, 8MP@15fps,AHD: 8M@12.5fps, 8M@15fps,CVBS: 960H P/N Day/Night Mode Auto/Color/BW (Black and White) Wide Dynamic Range (WDR) DWDR Image Enhancement BLC White Balance Auto/Manual AGC Yes
Interface Video Output Switchable TVI/AHD/CVI/CVBS
General Material Metal Dimension Ø 145.2 mm × 124.1 mm (Ø 7.1″ × 4.9″) Approx. 640 g (1.41lb.) Operating Condition -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) Communication Up the coax, Protocol: HIKVISION-C (TVI output) Power Supply 9 VDC to 15 VDC,-A: 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC,*You are recommended to use one power adapter to supply the power for one camera. Consumption Max. 6.4 W,-A: Max. 8.2W IR Range Up to 60 m
