กล้องวงจรปิด-DS-2CE5AD3T-VPIT3ZF

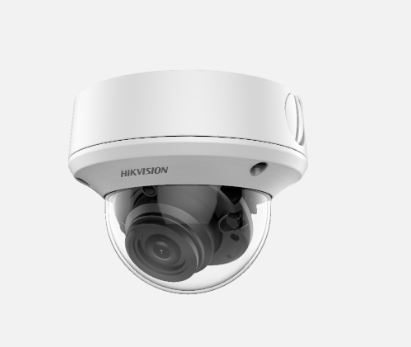

2 MP Ultra Low Light Vandal Motorized Varifocal Dome Camera
- 2 MP dome camera
- Strong night performance, capturing images in ultra-low light down to 0.005 lux
- Clear imaging even against strong back lighting due to 120 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- Lens focuses automatically when zooming in or out
- EXIR 2.0: advanced infrared technology with 70 m IR distance
- Water and dust resistant (IP67) and vandal proof (IK10)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Description
- Camera
- Image Sensor2.0 megapixel progressive scan CMOS
- Max. Resolution1920 (H) ×1080 (V)
- Min. Illumination0.005 Lux@(F1.2, AGC ON), 0 Lux with IR
- Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 340°, Tilt: 0° to 75°, Rotation: 0° to 355°
- Signal SystemPAL/NTSC
- Lens
- Lens Type2.7 mm to 13.5 mm
- Focal Length & FOV102° to 31°
- Lens MountΦ 14
- Image
- Image Parameters SwitchSTD/HIGH-SAT
- Image SettingsBrightness, Sharpness, 3D DNR, Mirror, Smart IR
- Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)≥ 120 dB
- Image EnhancementBLC, HLC
- White BalanceATW/MWB
- AGCHigh/Medium/Low
- Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS
- General
- MaterialMetal
- DimensionØ145 mm × 111.3 mm (5.70″ × 4.37″)
-
Approx. 830 g (1.83 lb.)
-A: Approx. 870 g (1.92 lb.)
- Operating Condition‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- LanguageEnglish
- Power Supply
12 VDC ±25%
-A: 24 VAC ±15%, 12 VDC ±20%
*You are recommended to use one power adapter to supply the power for one camera.
- Consumption
Max. 7.7 W
-A: Max. 9.7 W
- IR RangeUp to 70 m
- Approval
- ProtectionIP67, IK10
