กล้องวงจรปิด-DS-2CE5AU7T-AVPIT3ZF
กล้องวงจรปิด-DS-2CE5AU7T-AVPIT3ZF

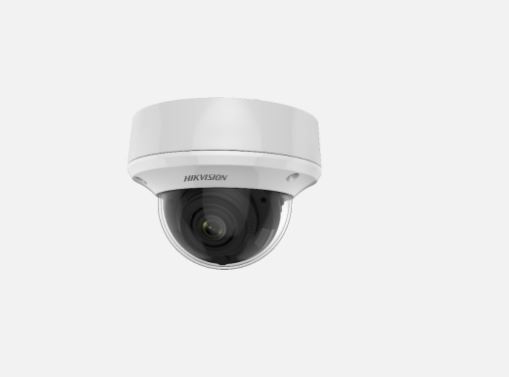

4K Ultra Low Light Vandal Motorized Varifocal Dome Camera
- 5 MP high performance dome camera
- Strong night performance, capturing images in ultra-low light down to 0.003 lux
- Clear imaging even against strong back lighting due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- Lens focuses automatically when zooming in or out
- EXIR 2.0: advanced infrared technology with 60 m IR distance
- Water and dust resistant (IP67) and vandal proof (IK10)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Description
- Camera
- Image Sensor8.29 megapixel progressive scan CMOS
- Max. Resolution3840 (H) × 2160 (V)
- Min. IlluminationColor: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter TimePAL: 1/12.5 s to 1/50, 000 s,NTSC: 1/15 s to 1/50, 000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°
- Signal SystemPAL/NTSC
- Lens
- Lens Type2.7 mm to 13.5 mm motorized varifocal lens
- Focal Length & FOV108.1° to 45.6°
- Lens MountΦ14
- Image
- Image SettingsBrightness, Sharpness, 3D DNR, Mirror, Smart IR
- Frame RateTVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps,,2MP@30fps,CVI: 8MP@12.5fps, 8MP@15fps,AHD: 8MP@12.5fps, 8MP@15fps,CVBS: 960H P/N
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)≥ 130 dB
- Image EnhancementBLC
- White BalanceAuto/Manual
- AGCYes
- Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS
- General
- MaterialMetal
- DimensionØ 145 mm × 111.3 mm (Ø 5.69″ × 4.37″)
- Approx. 860 g (1.90lb.)
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
- Power Supply9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC
- ConsumptionMax. 8.2 W
- IR RangeUp to 60 m
- Approval
- ProtectionIP67, IK10
