กล้องวงจรปิด DS-2DE1A400IW-DE3

กล้องวงจรปิด DS-2DE1A400IW-DE3

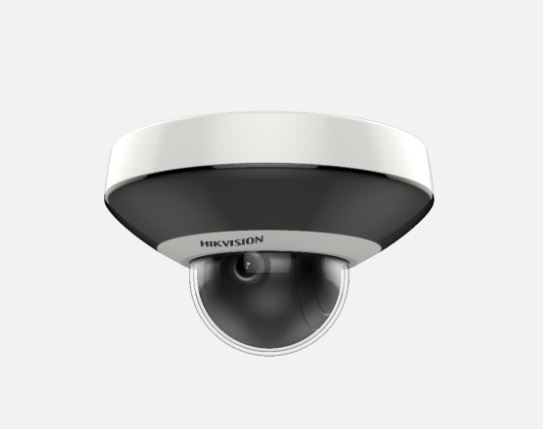

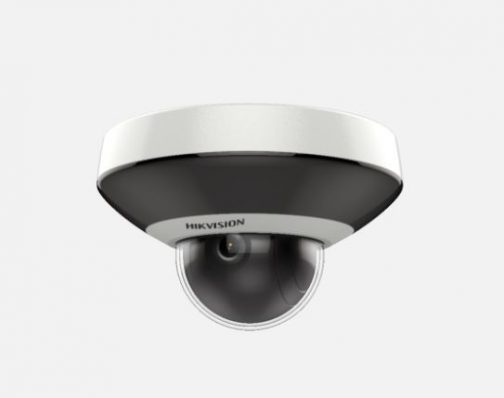

1-inch 4 MP Powered by DarkFighter IR Network Speed Dome

  • High quality imaging with 4 MP resolution
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Clear imaging against strong back lighting due to 120 dB WDR technology
  • Pan and tilt ability enables camera to monitor zones of interest
  • Up to 15m IR range ensures safety at night
  • Water and dust resistant (IP66)
  • Wi-Fi connection and easy installation
Categories: , Tags: , , , ,

Description

  • Lens
  • FOV2.8 mm: horizontal FOV 103.8°; vertical FOV 57.6°, diagonal FOV 123°,4mm: horizontal FOV 82.5°; vertical FOV 44.5°, diagonal FOV 97.7°
  • Working Distance2.8 mm: > 0.8 m; 4 mm: > 1.1 m
  • Aperture RangeF1.6
  • Focal Length2.8 mm, 4 mm, optional
  • Image
  • Image EnhancementHLC, BLC, 3D DNR, EIS, Regional Exposure, Regional Focus
  • Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
  • Max. Resolution2560 × 1440
  • Main Stream50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
  • Third Stream50Hz: 25fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • Network
  • Network StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
  • APIOpen-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform
  • Simultaneous Live view up to 20 channels
  • User/host up to 32 users,3 levels: Administrator, Operator and User
  • ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
  • Web BrowserIE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
  • Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
  • Alarm LinkageAlarm actions, such as Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
  • Interface
  • Audio Input1-ch audio input (line in)
  • Audio Output1-ch audio output (line out)
  • Network Interface1 RJ45 10 M/100 M Ethernet, PoE
  • Compression Standard
  • H.264+Yes
  • H.265+Yes
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • Video CompressionMain Stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG
  • Video Bitrate32 Kbps to 16384 Kbps
  • Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
  • Audio Bitrate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps(MP2L2)
  • SVCYes
  • Camera Module
  • Image Sensor1/3″ progressive scan CMOS
  • Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001 Lux @(F1.6, AGC ON),0 Lux with IR
  • White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
  • GainAuto/Manual
  • Shutter Time1/1 s to 1/30,000 s
  • Day & NightIR Cut Filter
  • Digital Zoom16×
  • Privacy Mask24 programmable privacy masks
  • Focus ModeAuto/Semi-automatic/Manual
  • WDR120 dB WDR
  • Supplement Light
  • IR Distance Up to 15 m
  • Smart IRYes
  • PTZ
  • Movement Range (Pan)0° to 330°
  • Pan SpeedConfigurable, from 0.1°/s to 100°/s, ,Preset speed: 100°/s
  • Movement Range (Tilt)From 0° to 90°
  • Tilt SpeedConfigurable, from 0.1°/s to 100°/s,Preset Speed: 100°/s
  • Proportional ZoomYes
  • Presets300
  • Power-Off MemoryYes
  • Park ActionPreset
  • 3D PositioningYes
  • PTZ Status DisplayYes
  • Preset FreezingYes
  • Scheduled TaskPreset, Dome Reboot, Dome Adjust
  • Smart Features
  • Basic Event DetectionMotion Detection, Video Tampering Detection, Exception
  • Smart DetectionFace Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection
  • Smart RecordANR (Automatic Network Replenishment), Dual-VCA
  • ROI Main stream, sub-stream, and third stream respectively support four fixed areas.
  • General
  • MaterialAluminum alloy, PC, PC+ABS
  • DimensionsΦ 124.3 mm × 76.9 mm (Φ 4.89″ × 3.03″)
  • Approx. 450 g (0.99 lb.)
  • Protection LevelIP66 Standard, TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • Power

    12 VDC, 1.0 A (Max. 12 W)

    PoE (802.3af), 36 to 57 VDC, 0.35 A (Max. 12 W)

    Including max. 3.6W for IR

  • Working Temperature-10°C to 55°C (-14°F to 131°F)
  • Working Humidity≤ 90%
