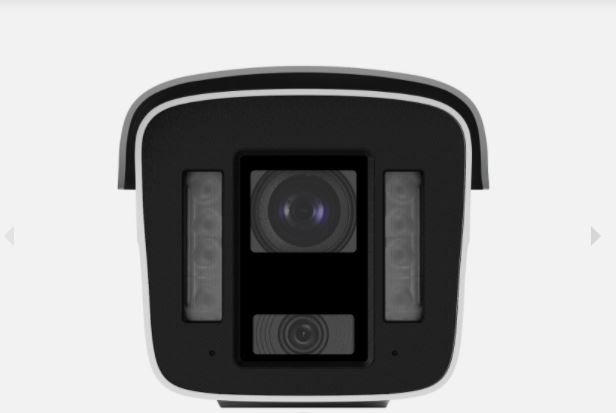

กล้องวงจรปิด Hikvision รุ่น iDS-2CD8C46G0-XZS

Description

• กล้อง
• Image Sensor

  Channel 1: 1/1.8″ Progressive Scan CMOS

  Channel 2: 1/1.8 Progressive Scan CMOS”

• Min. Illumination

  Channel 1:

  Color: 0.002 Lux @(F1.4, AGC ON),

  B/W: 0.0006 Lux @(F1.4, AGC ON), 0 Lux with IR

  Channel 2:

  Color: 0.001 Lux @(F1.0, AGC ON)

  B/W: 0.0003 Lux @(F1.0, AGC ON), 0 Lux with IR

• Shutter Speed1/25 s~1/100,000 s
• Slow ShutterYes
• P/NP/N
• Wide Dynamic Range120 dB
• Day & Night

  Channel 1: IR cut filter

  Channel 2: No

• Available Camera/Video Channel2

• Lens
• FocusSemi-auto, manual
• Lens Type & FOV

  Channel 1: 11~40 mm @F1.4, horizontal FOV: 37.0°~11.5°, vertical FOV: 20.2°~6.5°, diagonal FOV: 43.2°~13.2°

  Channel 2: 4 mm @F1.0, horizontal FOV: 89°, vertical FOV: 46.5°, diagonal FOV: 105°

• Lens Mount

  Channel 1: CS

  Channel 2: M16

• Aperture Type

  Channel 1: P-Iris

  Channel 2: No

• Illuminator
• Wavelength750 nm
• Supplement Light Range

  Channel 1: hybrid illumination (750+whitelight)

  Face: 20 m, normal surveillance: 80 m

  Channel 2: warm lamp

  Normal surveillance: 30 m

• Video
• Max. Resolution

  Channel 1: 2560 × 1440

  Channel 2: 2560 × 1440

• Main Stream

  Channel 1:

  50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

  Channel 2:

  50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

• Sub Stream

  Channel 1:

  50 Hz: 25 fps (704 × 576, 640 × 480)

  60 Hz: 30 fps (704 × 480, 640 × 480)

  Channel 2:

  50 Hz: 25 fps (704 × 576, 640 × 480)

  60 Hz: 30 fps (704 × 480, 640 × 480)

• Third Stream

  Channel 1:

  50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

  Channel 2:

  50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

• Fourth Stream

  Channel 1:

  50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

  Channel 2:

  50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

• Fifth Stream

  Channel 1:

  50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

  Channel 2:

  50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

• Video CompressionH.265/H.264/MJPEG
• Video Bit Rate32 Kbps~16 Mbps
• H.264 TypeBaseLine Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• H.264+Main stream supports
• H.265+Main stream supports
• Bit Rate ControlCBR/VBR
• Scalable Video Coding (SVC)H.265 and H.264 support
• Region Of Interest (ROI)4 fixed regions for each stream

• Audio
• Environment Noise FilteringYes
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
• Audio Bit Rate64 Kbps(G.711)/16 Kbps(G.722.1)/16 Kbps(G.726)/32~192 Kbps(MP2L2)
• Audio TypeMono sound

• Network
• APIOpen Network Video Interface, ISAPI, SDK, ISUP
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• User/HostUp to 32 users. 3 user levels: administrator, operator and user
• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web Browser

  Plug-in required live view: IE8+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+

  Local service: Chrome 41.0+, Firefox 30.0+

• Image
• Smart IRThe IR LEDs on camera should support Smart IR function to automatically adjust power to avoid image overexposure.
• Day/Night SwitchDay, Night, Auto, Schedule, Triggered by Alarm In
• Target CroppingYes
• DNR3D DNR
• Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
• Image EnhancementBLC, HLC, 3D DNR, Defog, EIS
• Image Parameters SwitchYes
• Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

• Interface
• Alarm3 inputs, 2 outputs (max. 24 VAC or 24 VDC, 1 A)
• Audio

  2 inputs (line in), 3.5 mm connector, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;

  1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 vpp, output impedance: 600 Ω, interface type: non-equilibrium,

  2 built-in mics, 1 built-in speaker

• RS-4851 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• Video Output1 Vp-p Composite Output (For debugging only)
• On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
• Hardware ResetYes
• Communication Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
• Power Output12 VDC, max. 200 mA (supported by all power supply types)
• HeaterYes

• Event
• Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, scene change detection, audio exception detection, defocus detection
• CountingYes

• Deep Learning Function
• Multi-Target-Type Detection

  Supports simultaneous detection of human body and face

  Gets 8 face features and 13 human body features

• Face Capture

  Face detection performance: detects up to 120 faces simultaneously

  Face detection angle: swings left and right from -60° to 60°, tilt up and down from -30° to 30°

  Upload face with background (1080p/720p) and closed-up face pictures

• Face Recognition

  Detects, captures and selects best human face pictures

  Recognizes face identity via face modeling, grading and comparing to those in face library

  Up to 10 face libraries, up to 150000 faces, and each face library is configurable

  Face library encryption: the camera chip has a hardware encryption module to protect data

• Intelligent (Traditional Algorithm)
• Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

• General
• Linkage Method

  Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm

  output, trigger recording, trigger capture

• Online UpgradeYes
• Firmware VersionV5.5.150
• General FunctionAnti-flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
• Software ResetYes
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Power Supply24 VAC ± 20%
• Power Consumption And Current24 VAC, 2.7 A, max. 40 W
• Power Interface2-core terminal block
• Camera MaterialMetal & Plastic
• Camera Dimension395 × 167 × 153 mm (15.55″ × 6.57″ × 6.02″)
• Package Dimension518 × 356 × 260 mm (20.39″ × 14.01″ × 10.23″)
• Camera Weight4250 g (9.37 lb.)
• With Package Weight8200 g (18.08 lb.)

• Approval
• ClassClass A
• ProtectionIP66

• Indicator
• Solid RedYes
