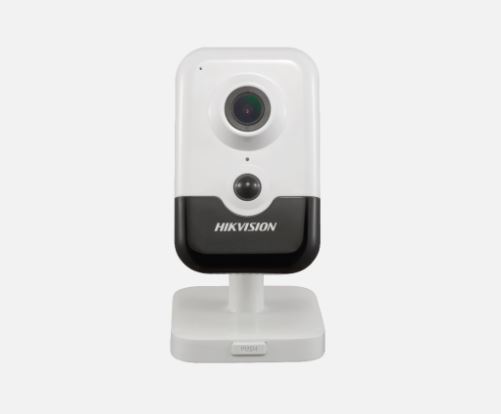

กล้องวงจรปิด Hikvision DS-2CD2423G0-IW

Description

• Camera
• Image Sensor1/2.7″ Progressive Scan CMOS
• Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR
• Shutter Speed1/3 s to 1/100,000 s
• Slow Shutter Yes
• Day &NightIR Cut Filter
• Wide Dynamic Range120 dB
• Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
• DNR3D DNR

• Lens
• Lens2.8/4 mm
• ApertureF2.0
• FOV

  2.8 mm, horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135°

  4 mm, horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102°

• Lens MountM12

• Illuminator
• IR Range10 m
• Wavelength850 nm

• PIR
• PIR AngleHorizontal: 90°, vertical: 80°
• PIR Range10 m

• Video
• Max. Resolution1920 × 1080
• Main Stream

  50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)

  60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)

• Sub Stream

  50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)

  60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)

• Third Stream

  50Hz: 25 fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288)

  60Hz: 30 fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)

• Video Compression

  Main stream: H.265/H.264

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264

• H.264 TypeMain Profile/High Profile
• H.265 TypeMain Profile
• Video Bit Rate32 Kbps to 16 Mbps
• SVCSupport H.264 and H.265 encoding

• Audio
• Audio CompressionG722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
• Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
• Environment Noise FilteringYes
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

• Smart Feature-Set
• Smart EventLine crossing detection, intrusion detection, face detection
• Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Face DetectionYes
• Linkage Method

  Trigger recording: memory card, network storage, pre-record and post-record

  Trigger captured pictures uploading: FTP, HTTP, NAS, Email

  Trigger notification: HTTP, ISAPI, Email

• Image
• Image EnhancementBLC/3D DNR/HLC
• Image SettingRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
• Day/Night SwitchDay/Night/Auto/Schedule

• Wi-Fi
• Frequency2.412 GHz to 2.4835 GHz
• Channel Bandwidth20 M/40 M
• SecurityWPA, WPA2
• Transfer Rate

  11b: 11 Mbps

  11g: 54 Mbps

  11n: up to 150 Mbps

• Wireless Range50 m
• Wireless StandardsIEEE 802.11b/g/n

• Network
• Network StorageSupport MicroSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR
• ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
• Simultaneous Live view up to 6 channels
• User/host up to 32 users. 3 levels: administrator, operator and user
• Client iVMS-4200, Hik-Connect, Hik-Central
• Web Browser

  Plug-in required live view: IE8+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+

  Local Service: Chrome 41.0+, Firefox 30.0+

• Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, PIR, illegal login
• Firmware Version5.6.3

• Interface
• Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
• Audio1 built-in mic, 1 built-in speaker, mono sound
• On-Board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB

• Compression Standard
• H.264+Main stream supports
• H.265+Main stream supports

• Smart Feature-Set
• Face DetectionYes

• General
• Web Client Language

  32 languages

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

• General FunctionAnti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
• Reset Yes
• Startup And Operating Conditions-10 °C to +40 °C (14 °F to +104 °F), Humidity 95% or less (non-condensing)
• Power Supply12 VDC ± 25%, PoE (802.3af, class 3)
• Power Consumption And Current12 VDC, 0.5 A, max. 6 W, Ø5.5 mm coaxial plug power; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7 W
• MaterialPlastic
• Dimensions102.8 mm × 65.2 mm × 32.6 mm (4.1″ × 2.6″ × 1.3″)
• Camera: Approx. 128 g (0.3 lb.)
