Indoor / Outdoor
|
Indoor
|
|
|---|---|---|
|
Image sensor
|
1/3 CMOS
|
|
|
Min. Illumination Color (lx)
|
0.1
|
|
|
Min. Illumination B/W (lx)
|
0.04 / 0 (w/IR-LED)
|
|
|
Maximum Resolution
|
Full HD (1,080p)
|
|
|
Maximum FPS
|
30
|
|
|
Super Dynamic
|
Yes
|
|
|
Image compensation
|
Adaptive Black Stretch, Back light compensation (BLC), Fog compensation, High light compensation (HLC), Digital noise reduction
|
|
|
Color/BW
|
ICR
|
|
|
ABF(Auto back focus)/Auto Focus/Focus Assist
|
Auto Focus
|
|
|
IR LED
|
Yes
|
|
|
Image Stabilizer
|
–
|
|
|
Corridor Mode
|
Yes
|
|
|
Privacy Zone
|
8
|
|
|
iA (Intelligent Auto)
|
Yes
|
|
|
Intelligent VMD (i-VMD)
|
–
|
|
|
Focal length
|
f=3.2 mm {1/8 inches}, F2.0
|
|
|
Zoom ratio
|
1x
|
|
|
Angular field of view (16:9)
|
H: 100 deg. V: 54 deg.
|
|
|
Angular field of view (4:3)
|
H: 81 deg. V: 60 deg.
|
|
|
Panning Range
|
-175 – +175 deg.
|
|
|
Tilting Range
|
-30 – +80 deg.
|
|
|
Network IF
|
10Base-T, 100Base-TX, RJ45 connector
|
|
|
Video Codec
|
H.265, JPEG
|
|
|
Transmission mode (H.265/H.264)
|
Constant bit rate, Variable bit rate, Frame rate, Best effort
|
|
|
Smart Coding
|
Yes
|
|
|
Audio Support
|
–
|
|
|
Built-in microphone
|
–
|
|
|
Microphone/Line Input
|
–
|
|
|
Audio Output
|
–
|
|
|
SD memory Card Slot
|
microSDXC
|
|
|
External I/O Terminals
|
–
|
|
|
Ambient Operating Humidity
|
10-90
|
|
|
Vandal Resistant
|
–
|
|
|
Water and Dust Resistance
|
–
|
|
|
ClearSight Coating / Rain Wash Coating
|
–
|
|
|
Dehumidification device
|
–
|
|
|
Temperature (degree, Celsius)
|
MAX |
50
|
| MIN |
-10
|
|
|
Temperature (degree, Fahrenheit)
|
MAX |
122
|
| MIN |
14
|
|
|
Power Source
|
PoE
|
|
|
ONVIF Profile
|
G, T
|
|
PANASONIC, Panasonic IP Camera

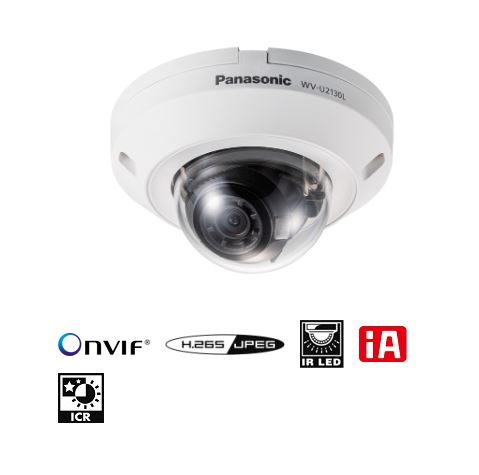

กล้องวงจรปิด Panasonic รุ่น WV-U2130L
Full HD Indoor Dome Network Camera
• Full HD 1080p up to 30fps
• Built-in fixed focus lens
• iA (intelligent Auto)
• Super Dynamic 120dB
• Color night vision (0.006 to 0.1 lx)
• H.265 Smart Coding
• Corridor mode (90 degrees or 270 degrees in image rotation)
As with the current i-PRO EXTREME Series lineup up to now, it features high compression using H.265 and smart coding, color shooting with color night vision in low-light environments, iA (Intelligent Auto) and super dynamic functions, and can be used for monitoring at night and/or in dark places with lighting, at the entrance of buildings with large differences in illumination, etc.
1. High compression using H.265 and smart coding technology for low bit rate high quality streams.
2. Capability of shooting in color even at night or in low-light environments.
3. Significantly reduces installation time and effort “Easy installation packaging” and adopts electric zoom.
