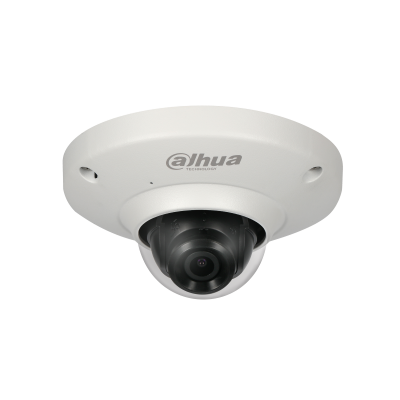

กล้องวงจรปิดDahua-DH-IPC-EB5531

Description

Technical Specification
Camera
Image Sensor 1/2.7” 5Megapixel progressive scan CMOS
Effective Pixels 2592(H)x1944(V)
RAM/ROM 512MB/32MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/100000s
Minimum Illumination
0.02Lux/F1.6( Color,1/3s,30IRE)
0.2Lux/1.6( Color,1/30s,30IRE)
0.05Lux/F1.6( B/W,1/3s,30IRE)
0.5Lux/1.6( B/W,1/30s,30IRE)
S/N Ratio More than 50dB
IR Distance N/A
IR On/Off Control N/A
IR LEDs N/A
Lens
Lens Type Fixed
Mount Type Board-in
Focal Length 1.4mm
Max. Aperture F1.6
Angle of View H: 180°, V: 180°
Optical Zoom N/A
Focus Control Fixed
Close Focus Distance N/A
DORI Distance
Lens Detect Observe Recognize Identify
1.4mm 28m(92ft) 11m(36ft) 6m(20ft) 3m(10ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range Pan:0˚~355˚; Tilt:0˚~75˚; Rotation:0˚~360˚
Intelligence
Advanced Intelligent Functions Tripwire ,Intrusion,Heat map
Video
Compression H.265+/H.265/H.264+/H.264
Streaming Capability 3 Streams
Resolution
5M(2592×1944)/3M(2048×1536)/
UXGA(1600×1200)/1.3M(1280×960)/
D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate
Main Stream:5M(1~25fps)
Sub Stream: D1(1~25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H.264: 24~10240Kbps
H.265: 14~9984Kbps
Day/Night Electronic

BLC Mode BLC / HLC / WDR
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detetion Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization
(EIS) N/A
Smart IR N/A
Defog N/A
Digital Zoom 16x
Flip N/A
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression G.711a/ G.711Mu/ AAC/ G.726
Network
Ethernet RJ-45 (10/100Base-T)
Protocol
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;
FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;
UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;
IGMP; SNMP
Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users /20 Users
Edge Storage
NAS
Local PC for instant recording
Mirco SD card 128GB
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, Easy4ip
Smart Phone IOS, Android
Certifications
Certifications
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
Interface
Video Interface N/A
Audio Interface Built-in Mic
RS485 N/A
Alarm N/A
Electrical
Power Supply DC12V, PoE (802.3af)(Class 0)
Power Consumption <3.4W
