Indoor / Outdoor
|
Outdoor
|
|
---|---|---|
Image sensor
|
1/2.9 MOS
|
|
Min. Illumination Color (lx)
|
0.015
|
|
Min. Illumination B/W (lx)
|
0.006
|
|
Maximum Resolution
|
2MP – 3MP (1,080p / 2,048 x 1,536)
|
|
Maximum FPS
|
60
|
|
Super Dynamic
|
Yes
|
|
Image compensation
|
Adaptive Black Stretch, Back light compensation (BLC), Fog compensation, High light compensation (HLC), Digital noise reduction
|
|
Color/BW
|
ICR
|
|
ABF(Auto back focus)/Auto Focus/Focus Assist
|
Auto Focus
|
|
IR LED
|
–
|
|
Image Stabilizer
|
Yes
|
|
Corridor Mode
|
–
|
|
Privacy Zone
|
32
|
|
iA (Intelligent Auto)
|
Yes
|
|
Intelligent VMD (i-VMD)
|
Type4
|
|
Focal length
|
f=4.0 – 84.6 mm, {5/32 – 3-11/32 inches}, F1.6 Motorized
|
|
Zoom ratio
|
21x
|
|
Angular field of view (16:9)
|
H: 3.4-73 deg. V: 2.0-42 deg.
|
|
Angular field of view (4:3)
|
H: 2.9-61 deg. V: 2.2-46 deg.
|
|
Panning Range
|
0 – 350 deg.
|
|
Tilting Range
|
-30 – +90 deg.
|
|
Network IF
|
10Base-T, RJ45 connector
|
|
Video Codec
|
H.265, JPEG
|
|
Transmission mode (H.265/H.264)
|
Constant bit rate, Variable bit rate, Frame rate, Best effort
|
|
Smart Coding
|
Yes
|
|
Audio Support
|
Yes
|
|
Built-in microphone
|
–
|
|
Microphone/Line Input
|
Yes
|
|
Audio Output
|
Yes
|
|
SD memory Card Slot
|
SDXC
|
|
External I/O Terminals
|
Yes
|
|
Ambient Operating Humidity
|
10-100
|
|
Vandal Resistant
|
IK10 (IEC62262)
|
|
Water and Dust Resistance
|
IP66 (IEC60529), Type 4X(UL50), NEMA 4
|
|
ClearSight Coating / Rain Wash Coating
|
ClearSight Coating
|
|
Dehumidification device
|
Yes
|
|
Temperature (degree, Celsius)
|
MAX |
60
|
MIN |
-40
|
|
Temperature (degree, Fahrenheit)
|
MAX |
140
|
MIN |
-40
|
|
Power Source
|
PoE+, 24V AC
|
|
SSL device certificate
|
Yes
|
|
ONVIF Profile
|
S, G
|

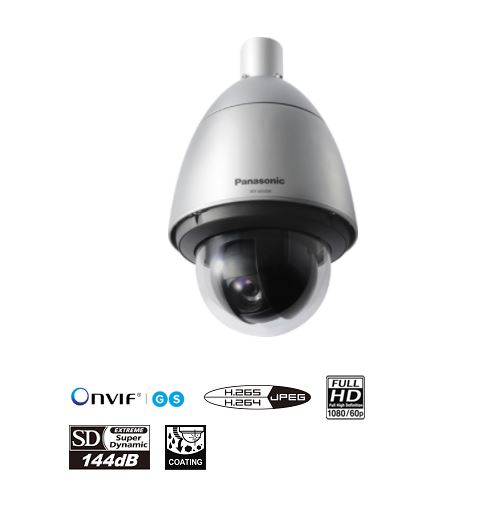

กล้องวงจรปิดPanasonic รุ่นWV-S6530N-IP Camera / Network Camera
Extreme image quality for evidence capturing under challenging conditions
– Sharp and clear image of fast moving vehicles with Intelligent Auto and ClearSight Coating
– Outstanding low light performance in true color with low noise for night time applications
– Super Dynamic 144dB for backlit situation by headlights and shadows on the streets at night
– Environmental durability: IP66, IK10, Long life Pan/Tilt gear mechanism, Wide operating temperature up to 60 °C (140 °F) and electric dehumidifier
Extreme H.265 compression with new Smart Coding
– Longer recording, less storage compared to H.264 based compression techniques
– New self-learning ROI* encoding (Auto VIQS) dynamically detect motion areas to keep vehicles and human in good picture quality while lowering your bandwidth
* Region of Interest
Extreme Data Security
– Full encryption SD card edge recording to keep your data safe
– FIPS 140-2 Level 1 compliant
– Full end-to-end system encryption with supported VMS and devices to protect from IP snooping/spoofing and detect data alteration
This Full HD (1,920 x 1,080) / 60 fps PTZ Network Camera is based on the concept of “i-PRO EXTREME”.
• Full-HD 1920×1080 60fps
• ClearSight Coating is a special coating applied to the surface of the transparent cover that makes it difficult for water droplets to adhere to the dome cover
• Durable Pan/Tilt gear mechanism
• Intelligent Auto (iA) feature provides increased discernibility even in environments with poor visibility
• Extreme Super Dynamic technologies deliver 144 dB wide dynamic range
• Color night vision (0.001 to 0.015 lx)
• IP66, IK10 certified
• Wider operating temperature range -40°C to +60°C (-40°F to +140°F)
*When using 24 V AC power supply
