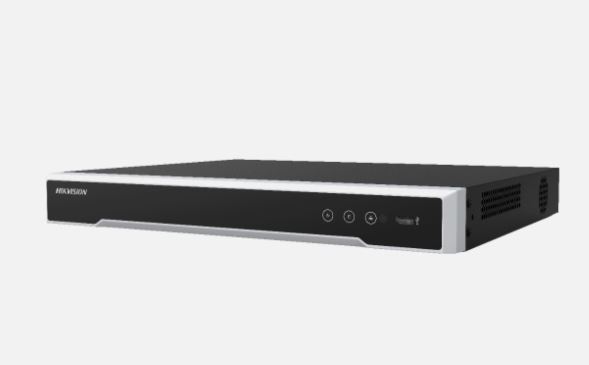

เครื่องบันทึก Hikvision DS-7608NI-K1/4G
8-ch Mini 1U 4G NVR
- Up to 8-ch IP camera input
- Up to 80 Mbps incoming bandwidth, and 80 Mbps outgoing bandwidth
- H.265+/H.265/H.264+/H.264 video compression
- HDMI and VGA independent output for 8-ch device
- 4G wireless network, SIM/UIM card slot on rear panel, support to view SIM/UIM status, network operator, signal strength, network registration status, dial status, real-time mode, etc.
- Storage and Playback：1 SATA interface (up to 6 TB capacity per HDD)；Smart Function：Support multiple VCA (Video Content Analytics) events
- Network & Ethernet Access：1 self-adaptive 10/100/1000 Mbps network interface
Description
- System Parameter
- Video Input Channel8
- Video Resolution8MP/7MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Outgoing Bandwidth80Mbps
- Incoming Bandwidth80 Mbps
- Video Parameter
- Video Output1-ch HDMI, 1-ch VGA
- Video Output ModeHDMI/VGA independent output
- HDMI Output1920*1080/60Hz，1280*1024/60Hz，1280*720/60Hz，1024*768/60Hz
- VGA Output1920*1080/60Hz，1280*1024/60Hz，1280*720/60Hz，1024*768/60Hz
- Video Decoding FormatH.265;H.265+;H.264;H.264+;MPEG4
- Aux Port Window Division1/4/6/8/9
- Decoding Capability4*1080P
- CVBS Output只硬件预留，基线不支持，不选配
- Live View Window Division1/4/6/8/9
- Synchronous Playback8
- Audio Parameter
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Audio Decoding FormatG.711ulaw;G.711alaw;G.722;G.726;AAC;MP2L2
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- HDD Management
- HDD No.1 SATA interface
- Max. Capacity Per HDDUp to 6 TB capacity for each disk
- Recording Management
- Playback ModeNormal/Smart, Event, Tag, Eternal File
- Network Management
- Remote Connections64
- ProtocolHIKVISION, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF, PANASONIC, PELCO, RTSP, SAMSUNG, SANYO, SONY, VIVOTEK, ZAVIO
- Network ProtocolIPv6, HTTP, HTTPS, UPnP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
- External Port
- Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- Serial Port不支持
- USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
- Alarm Input4
- Alarm Output1
- Wireless Transmission
- UIM Card Slot1, on rear panel
- SMA Interface1 SMA interface, antenna module cable length: 3 m
- Wireless Standard
GSM/EDGE:B3/B8
WCDMA:B1/B5/B8
LTE-FDD:B1/B3/B5/B7/B8/B20
LTE-TDD:B38/B40/B41
- General Standard
- Power12 VDC, 2 A
- Consumption (Without HDD)≤10 W
- Working Temperature-10℃～＋55℃
- Working Humidity10％～90％
- ChassisMini 1U
- Dimension315 × 240 × 48 mm (12.4 × 9.4 × 1.9 inch)
- Weight (Without HDD)≤1Kg
