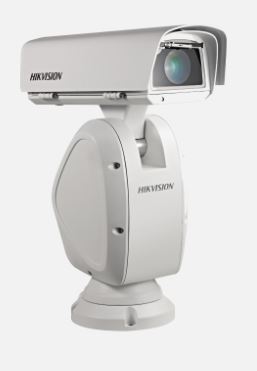

Home / PRODUCT / HIKVISION / Hikvision IP Camera / กล้องวงจรปิด รุ่น DS-2DY9250XHikvision IP Camera กล้องวงจรปิด รุ่น DS-2DY9250X
9-inch 2 MP 50X Powered by DarkFighter Network Positioning System
High quality imaging with 2 MP resolution
Excellent low-light performance
50x optical zoom provides close up views over expansive areas
Water and dust resistant (IP66)
3 years warranty
Lens FOV Horizontal field of view: 41.3° to 1.1° (wide-tele),Vertical field of view: 23.6° to 0.6° (wide-tele),Diagonal field of view: 47.4° to 1.3° (wide-tele) Zoom Speed Approx. 4.5 s (optical lens, wide-tele) Working Distance 10 mm to 1500 mm (wide-tele) Aperture Range F1.8 to F5.5 Focal Length 6.6 mm to 330 mm, 50× Optical
Image Image Enhancement HLC/BLC/3D DNR/Defog/OIS/Regional Exposure/Regional Focus Sub-Stream 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) Max. Resolution 1920 × 1080 Main Stream 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720), 50fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720), 60fps (1920 × 1080, 1280 × 960, 1280 × 720) Third Stream 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Network Network Storage Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour API Open-ended, support ONVIF, PSIA and CGI, support HIKVISION SDK and Third-Party Management Platform Simultaneous Live View Up to 20 channels User/Host Up to 32 users. ,3 levels: Administrator, Operator and User Client iVMS-4200, iVMS-5200 Web Browser IE 8+, Firefox 30+, Safari 8.0+ web browser Security Measures User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering Alarm Linkage Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
Interface BNC 1.0 V [p-p]/75 Ω, NTSC (or PAL) composite, BNC Alarm Output 2-ch alarm output Alarm Input 7-ch alarm input Audio Input 1-ch audio input, 2 to 2.4 V[p-p], 1 KΩ ± 10% Audio Output 1-ch audio output, line level, impedance: 600 Ω Network Interface 1 RJ45 10 M/100 M Ethernet Interface RS-485 Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive Fiber Cable 1 1000 M FC interface, TX1310/ RX1550 nm wavelength, 20 km transmission distance
Compression Standard H.264+ Support H.265+ Support H.264 Type Baseline Profile/Main Profile/High Profile Video Compression Main Stream: H.265+/H.265/H.264+/H.264,Sub-Stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG H.265 Type Main Profile Video Bitrate 32 kbps to 16384 kbps Audio Compression G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM Audio Bitrate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2) SVC Support
Camera Module AGC Auto/Manual Image Sensor 1/2.8″ progressive scan CMOS Min. Illumination Color: 0.05 Lux @(F1.8, AGC ON),B/W: 0.01 Lux @(F1.8, AGC ON) White Balance Auto/Manual/ATW (Auto-tracing White Balance)/ Indoor/Outdoor/Fluorescent lamp/Sodium lamp Shutter Time 1/1 s to 1/30,000 s Day & Night IR Cut Filter Digital Zoom 16× Privacy Mask 24 programmable privacy masks Focus Mode Auto/Semi-automatic/Manual WDR 120 dB WDR
PTZ Movement Range (Pan) 360° endless Pan Speed Configurable, from 0.1°/s to 100°/s, Preset Speed: 100°/s Movement Range (Tilt) From -90° to 40° (auto-flip) Tilt Speed Configurable, from 0.1°/s to 50°/s, Preset Speed: 100°/s Proportional Zoom Support Presets 300 Patrol Scan 8 patrols, up to 32 presets for each patrol Pattern Scan 4 pattern scans, record time over 10 minutes for each scan Power-Off Memory Support Park Action Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan PTZ Status Display ON/OFF Preset Freezing Support Scheduled Task Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
Smart Features Smart Detection Face Detection, Intrusion Detection, Line Crossing Detection, Audio Exception Detection, Region Entrance Detection, Region Exiting Detection Smart Record ANR (Automatic Network Replenishment), Dual-VCA ROI Main stream, sub-stream and third stream respectively support eight fixed areas.
General Material Aluminum alloy ADC12 Dimensions Φ390 mm × 491 mm (Φ 15.35″ × 19.33″) Approx. 11 kg (24.25 lb) Protection Level IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection Power 24 VAC (Max. 70 W) Working Temperature Temperature: -40°C to 70°C (-40°F to 158°F) Working Humidity Humidity: ≤ 90%
