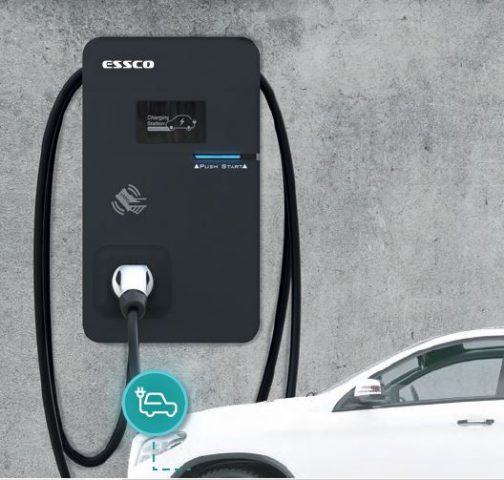

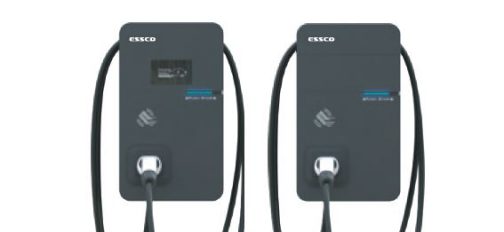

ESSCO AX Series 48A-11kW Single Phase 32A-22kW Three Phase Wall-mount EV AC Charger เครื่องชาร์จรถยนต์ไฟฟ้า
Warranty 2 year
Description
48A-11kW Single Phase
32A-22kW Three Phase
Wall-mount EV AC Charger
• Ideal for residential and commercial EV charging
• Optional wired/wireless connection for Central Management
System
• Supports RFID card & QR code for user authentication and
management
• Input: 200Vac~240Vac
• Modern, ergonomic and customizable design
• Optional 5 inch LCD display
• IP protection class for outdoors: IP56/NEMA4
• Supports Over the Air Technology
• Charging interface: SAE J1772 (Type 1)/IEC 62196-2 (Type 2)
• Supports OCPP 1.6 Json (Upgradeable to 2.0)
• Supports RS232/485 external communication interface (Optional)
• Supports ISO 15118 protocol
• Supports dynamic output load distribution, making the field power
configuration planning of charging stations more flexible
