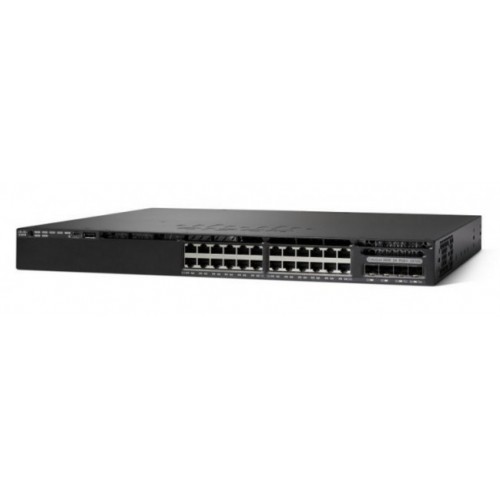

| Part | WS-C3650-24TS-L |
| Device Type | Switch – 24 ports – L3 – Managed – stackable |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000+ 4 x SFP |
| Performance | Switching capacity : 88 Gbps |
| Forwarding performance : 65.47 Mpps | |
| Capacity | IPv4 routes : 24000 |
| NetFlow entries : 24000 | |
| Virtual interfaces (VLANs) : 1000 | |
| Switched virtual interfaces (SVIs) : 1000 | |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 |
| Routing Protocol | OSPF, RIP-1, RIP-2, static IP routing, RIPng |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 44.5 cm x 44.8 cm x 4.4 cm |
Cisco Switch Catalyst, CISCO-Network Switch
Cisco Catalyst รุ่น[WS-C3650-24TS-L]3650 24 Port Data 4x1G Uplink LAN Base
MANUFACTURER: CISCO
P/N: WS-C3650-24TS-L
