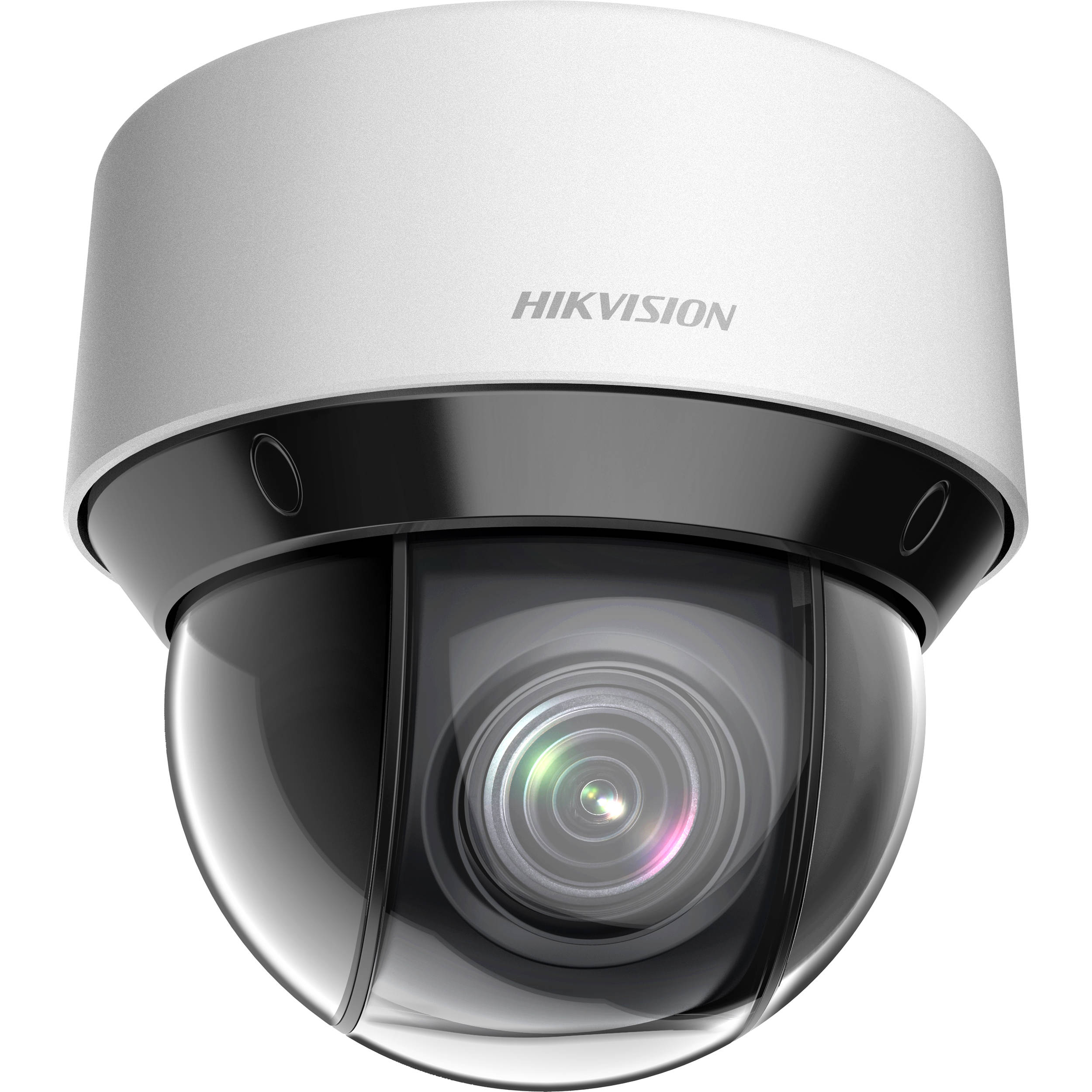

กล้องวงจรปิด hikvision รุ่น DS-2DE4A225IW

4-inch 2 MP 25X Powered by DarkFighter IR Network Speed Dome

  • High quality imaging with 2 MP resolution
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Clear imaging against strong back lighting due to 120 dB WDR technology
  • Pan and tilt ability enables camera to monitor zones of interest
  • 25x optical zoom allows for closer viewing of subjects in expansive areas
  • Up to 50m IR range ensures safety at night
  • Water and dust resistant (IP66)
  • 3 years warranty
Categories: , Tags: , ,
  • Lens
  • FOVHorizontal field of view: 57.6° to 2.5° (wide-tele),Vertical field of view: 34.4° to 1.4° (wide-tele),Diagonal field of view: 64.5° to 2.9° (wide-tele)
  • Zoom SpeedApprox. 3.2 s (optical lens, wide-tele)
  • Working Distance10 mm to 1500 mm (wide-tele)
  • Aperture RangeF1.6 to F3.5
  • Focal Length4.8 mm to 120 mm, 25× optical
  • Image
  • Image EnhancementHLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
  • Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
  • Max. Resolution1920 × 1080
  • Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),50fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720),60fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • Network
  • Network StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
  • APIOpen-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform
  • Simultaneous Live ViewUp to 20 channels
  • User/HostUp to 32 users. ,3 levels: Administrator, Operator and User
  • ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
  • Web BrowserIE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
  • Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
  • Alarm LinkageAlarm actions, such as Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
  • Interface
  • Alarm Output1 alarm output
  • Alarm Input1 alarm input
  • Audio Input1 audio input
  • Audio Output1 audio output
  • Network Interface1 RJ45 10 M/100 M Ethernet Interface; PoE+ (802.3 at, class4)
  • Compression Standard
  • H.264+Support
  • H.265+Support
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • Video CompressionMain Stream: H.265+/H.265/H.264+/H.264,Sub-Stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG
  • H.265 TypeMain Profile
  • Video Bitrate32 Kbps to 16384 Kbps
  • Audio CompressionG.711alaw/G.711ulaw/G.722/G.726/MP2L2/PCM
  • Audio Bitrate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps (MP2L2)
  • SVCSupport
  • Camera Module
  • AGCAuto/Manual
  • Image Sensor1/2.8″ progressive scan CMOS
  • Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001 Lux @(F1.6, AGC ON),0 Lux with IR
  • White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
  • Shutter Time1/1 s to 1/30,000 s
  • Day & NightIR Cut Filter
  • Digital Zoom16×
  • Privacy Mask24 programmable privacy masks
  • Focus ModeAuto/Semi-automatic/Manual
  • WDR120 dB WDR
  • Supplement Light
  • IR Distance50 m
  • Smart IRSupport
  • PTZ
  • Movement Range (Pan)360° endless
  • Pan SpeedConfigurable, from 0.1°/s to 300°/s,Preset Speed: 350°/s
  • Movement Range (Tilt)From -5° to 90° (auto-flip)
  • Tilt SpeedConfigurable, from 0.1°/s to 160°/s,Preset Speed: 200°/s
  • Proportional ZoomSupport
  • Presets300
  • Patrol Scan8 patrols, up to 32 presets for each patrol
  • Pattern Scan4 pattern scans, record time over 10 minutes for each scan
  • Power-Off MemorySupport
  • Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
  • PTZ Status DisplaySupport
  • Preset FreezingSupport
  • Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
  • Smart Features
  • Basic Event DetectionMotion Detection, Video Tampering Detection, Alarm Input, Alarm Output, Exception
  • Smart DetectionAudio Exception Detection, Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection
  • Smart TrackingManual Tracking, Auto Tracking, Event Tracking
  • Smart RecordANR (Automatic Network Replenishment), Dual-VCA
  • ROIMain stream, sub-stream, and third stream respectively support four fixed areas.
  • General
  • MaterialADC12, PC, PC+ABS, SUS304, POM
  • DimensionsΦ 169 mm × 161 mm (Φ 6.65″ × 6.34″)
  • Approx. 2.45 kg (5.40 lb)
  • Protection LevelIP66 Standard, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • Power12 VDC & PoE+ (802.3 at, class4), Max.:18 W (IR Max.5 W)
  • Working Temperature-30°C to 65°C (-22°F to 149°F)
  • Working Humidity≤ 90%
  • InstallationVariable installation methods optional, including ceiling mounting (default), in-ceiling mounting, pendant mounting and wall mounting
