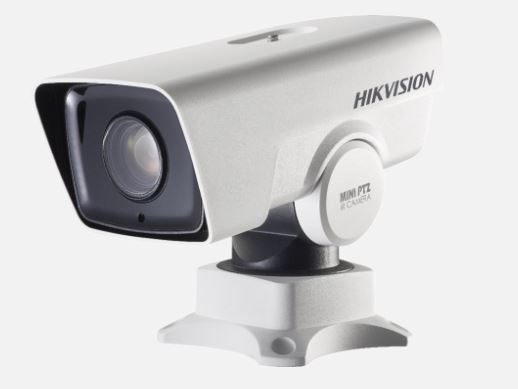

กล้องวงจรปิด รุ่น DS-2DY3320IW

3-inch 3 MP 20X DarkFighter IR Network Positioning System

Camera
Image Sensor1/2.8″ progressive scan CMOS
Max. Resolution2048 × 1536
Min. IlluminationColor: 0.05 Lux @(F1.6, AGC ON), B/W: 0.01 Lux @(F1.6, AGC ON), 0 Lux with IR
Shutter Speed1/1 s to 1/30,000 s
Day & NightIR cut filter
Zoom20x optical, 16x digital

PTZ
Movement Range (Pan)360° endless
Movement Range (Tilt)From -40° to 30°
Pan SpeedConfigurable, from 0.5°/s to 50°/s. Preset speed 50°/s
Tilt SpeedConfigurable, from 0.5°/s to 25°/s. Preset speed 25°/s
Proportional PanYes
Presets300
Preset FreezingYes
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans, record time over 10 minutes for each scan
Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PTZ Status DisplayYes
Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust
Power-Off MemoryYes

Video
Main Stream
50Hz: 25fps (2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)

50fps (1920 × 1080, 1280 × 960, 1280 × 720)

60Hz: 30fps (2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)

60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream
50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)

60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264

Sub-Stream: H.265/H.264/MJPEG

Third Stream: H.265/H.264/MJPEG
H.264 TypeBaseline Profile/Main Profile/High Profile
Region Of Interest (ROI)Main stream, sub-stream and third stream respectively support two fixed areas

Network
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
Simultaneous Live ViewUp to 20 channels
APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
User/HostUp to 32 users; 3 levels: Administrator, Operator and User
SecurityUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Network StorageNAS (NFS, SMB/CIFS), ANR
ClientiVMS-4200, iVMS-4500, iVMS-5200
Web BrowserIE 8 to 11, Chrome 31.0+, Firefox 30.0+, Edge 16.16299+

Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementBLC, HLC, 3D DNR
Privacy Mask8 programmable privacy masks
Regional FocusYes
Regional ExposureYes

Interface
Ethernet Interface1 RJ45 10 M/100 M Ethernet Interface; PoE (802.3at, class4)
On-Board StorageBuilt-in memory card slot, support MicroSD/SDHC/SDXC, up to 128 GB
Audio1 input, 1 output
Alarm1 input, 1 output

Event
Smart EventIntrusion Detection, Line Crossing Detection, Region Exiting Detection, Region Entrance Detection
Alarm LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.

General
Power
12 VDC, 1.6 A and PoE (802.3at), 42.5 to 57 VDC, 0.6 A, Class4

Max. 19 W, including max. 9.2 W for IR
Dimension255 mm × 129 mm × 195 mm (10.03″ × 5.08″ × 7.68″)
Approx. 3 kg (6.61 lb)
Operating Condition
Working Temperature: Outdoor: -30°C to 65°C (-22°F to 149°F)

Working Humidity: ≤ 95%
Language
32 languages.

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
