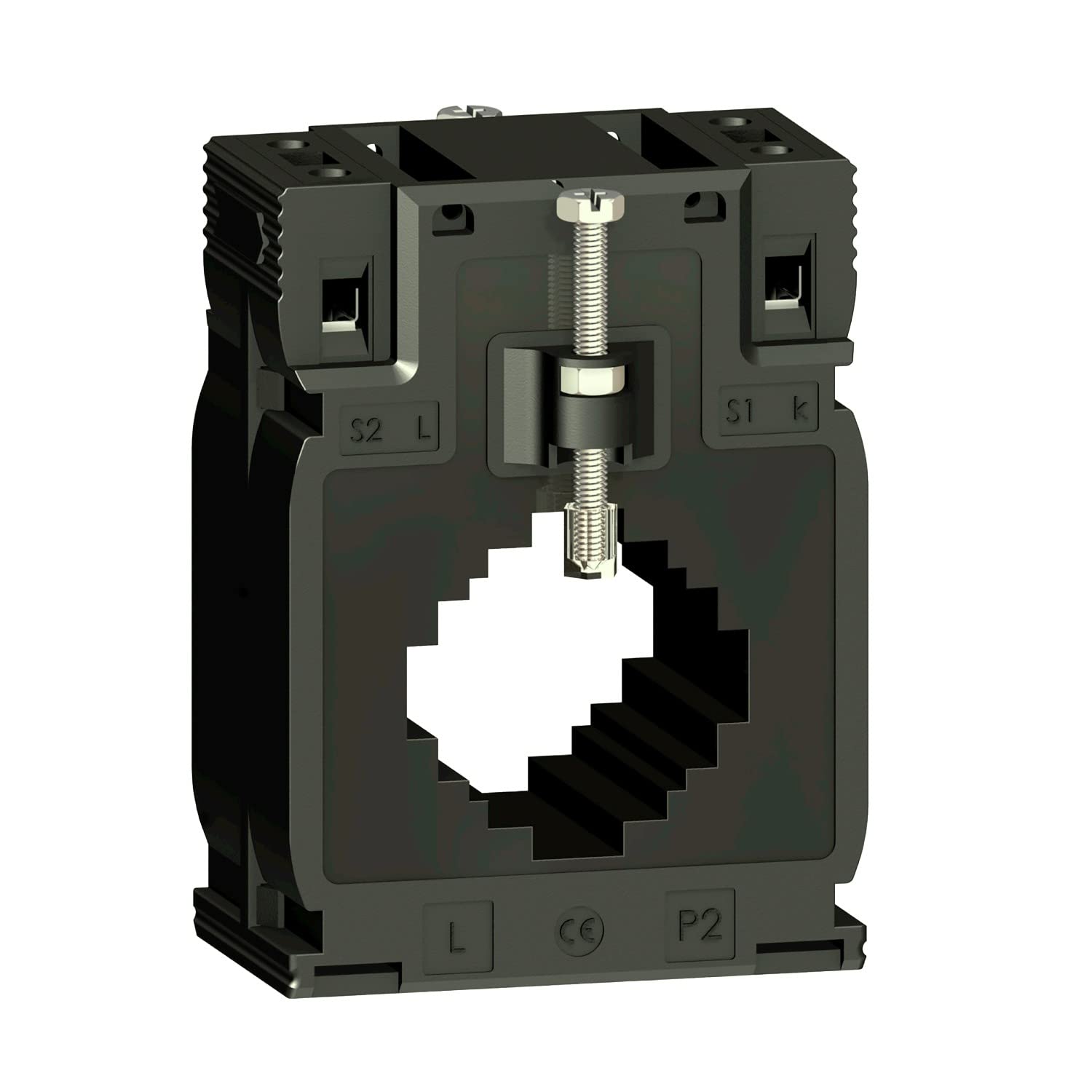

LUMEL CURRENT TRANSFORMER (CT) 300/5A CLASS-0.5,5VA50/60Hz Busbar: 30.5 x 10.5mm,LCTB 5030300300A55
Current Transformer is used for the measurement of electric alternating currents. When current in a circuit (primary current) is too high to directly apply to measuring instruments, a current transformer produces a reduced current (secondary current) accurately proportional to the current in the circuit, which can be conveniently connected to measuring and recording instruments. A current transformer also isolates the measuring instruments from what may be very high voltage in the monitored circuit. Relationship between primary and secondary currents is called rated transformation ratio.
Featues:
Wide range of accuracy classes: 0.2S, 0.2, 0.5S, 0.5, 1; 3
Wide range of supported primary currents, the dimensions of rails, the length of casing and hole diameters.
Multiple mounting methods, including wall mounting, DIN rail 35mm, the conductor, a current bar.
Shields designed to seal connections.
General Specification
Applicable standard:
IEC 61869-1/2
Case:
10% glass filled polycarbonate, flame retardant grades classified UL 94V-0 or housing made of epoxy resin (LRC series only)
Connection:
Two connections on each side. M4 screws with self lifting clamp strap.
