Name: HML-HMS2000
SKU: 19100
Price: 11529.00 THB
Availability: InStock

Model	HMS-2000
Input Data (DC)
Commonly used module power (W)	400-670
Start-up voltage (V)	22
Operating voltage range (V)	16-60
Maximum input voltage (V)	65
Maximum input current (A)	4×20
Output Data (AC)
Rated output power (VA)	2000
Rated output current (A)	9.09/8.7/8.33
Nominal output voltage (V)	220/230/240
Nominal output voltage range (V)1	180–275
Nominal frequency/range (Hz)1	50/45–55 or 60/55–65
Power factor (adjustable)	> 0.99 default 0.8 leading…0.8 lagging
Total harmonic distortion	< 3%
Maximum units per branch2	3/3/3
Efficiency
CEC peak efficiency	96.5%
Nominal MPPT efficiency	99.8%
Nighttime power consumption (mW)	< 50
Mechanical Data
Ambient temperature range (°C)	-40 to +65
Dimensions (W × H × D mm)	331 × 218 × 36.6
Weight (kg)	4.7
Enclosure rating	Outdoor IP67 (NEMA 6)
Cooling	Natural convection (no fans)
Features
Communication	Sub-1G
Monitoring	S-Miles Cloud3
Compliance	EN 50549-1: 2019, VDE-AR-N 4105: 2018, UL 1741, ABNT NBR 16150, IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4, IEC/EN 61000-3-2/-3

HML-HMS2000

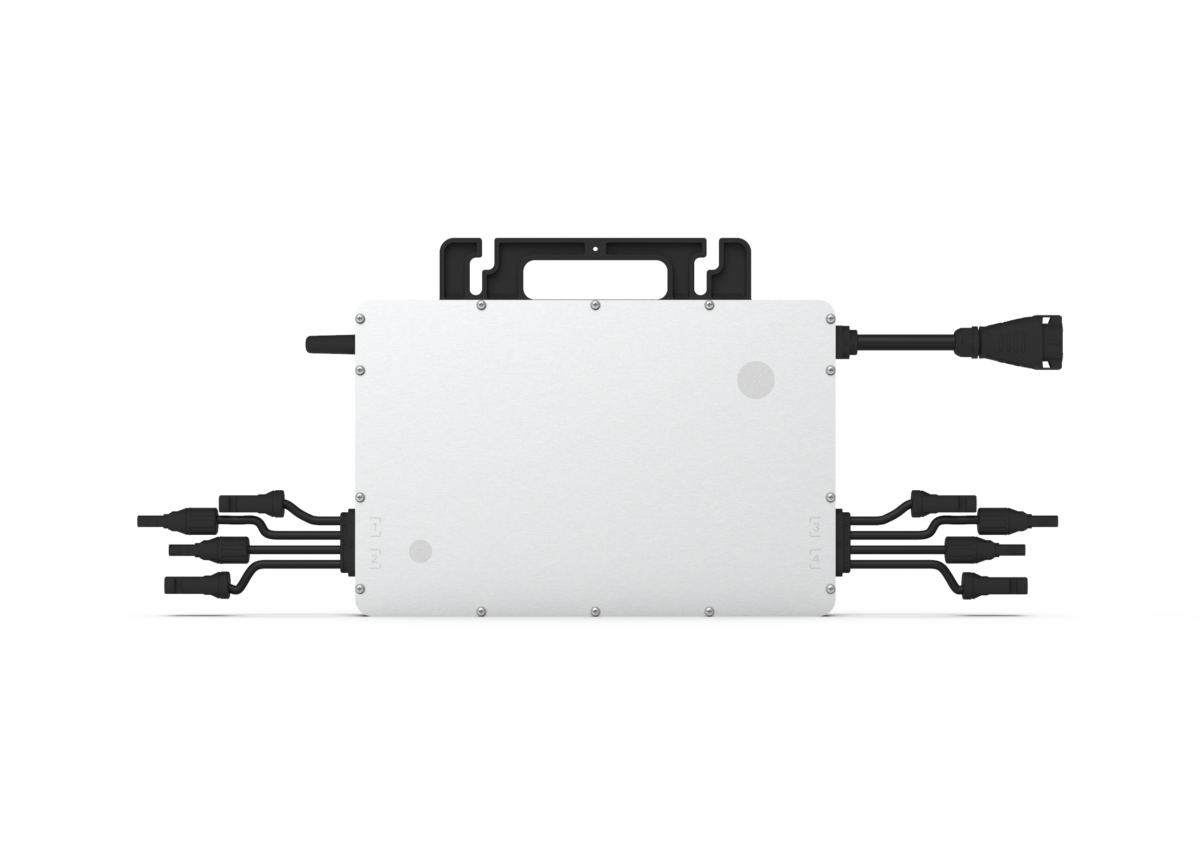

HMS-2000 Microinverter Hoymiles Single-Phase
