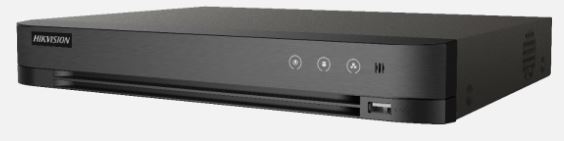

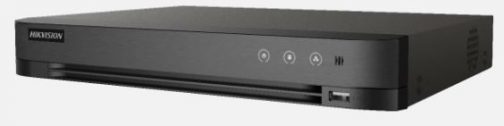

เครื่องบันทึก hikvision รุ่น iDS-7208HUHI-M1/S

1-ch face detection or 4-ch false alarm filter, 8 Turbo HD/CVI / AHD / CVBS self-adaptive interfaces input, 8-ch video&1-ch audio input, 1 SATA interface, H.265/H.265+ compression, 8MP: 8fps, 5MP: 12fps, 4MP: 15fps, 3MP: 18fps, 1920×1080P: 25(P)/30(N) fps/ch, 4K UHD output, support CVBS output, standalone 1U case

3 years warranty

Description

Description

Recording
Encoding Resolution
Main stream:

8 MP@8 fps/5 MP@12 fps/

4 MP@15 fps/3 MP@18 fps

1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

Sub-stream:

WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bit Rate32 Kbps to 10 Mbps
Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Dual StreamSupport
Stream TypeVideo, Video & Audio
Audio CompressionG.711u
Audio Bit Rate64 Kbps

Video And Audio
Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Output1-ch, RCA (Linear, 1 KΩ)
Synchronous Playback8-ch
IP Video Input8-ch (up to 16-ch);Up to 6 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
HDTVI Input
8 MP, 5 MP, 4 MP, 3 MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
HDCVI Input4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
CVBS InputPAL/NTSC
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Analog Video Input8-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
AHD Input5 MP, 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω),

resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI/VGA Output
HDMI:

1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz,

1920 × 1080/60Hz,

1280 × 1024/60Hz,

1280 × 720/60Hz,

1024 × 768/60Hz

VGA:

1-ch, 1920 × 1080/60Hz,

1280 × 1024/60Hz,

1280 × 720/60Hz,

1024 × 768/60Hz

HDMI/VGA simultaneous output

Network
Network ProtocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Remote Connections64
Network Interface
1,RJ45 10M/100M/1000M self-adaptive

Ethernet interface
