เครื่องบันทึก hikvision รุ่น iDS-9632NXI-I8/BA
32-ch 2U 4K DeepinMind NVR
- Deep learning based video analytics for not wearing hard hat detection and behavior analysis, including people running detection, people gathering detection, violent motion detection, using mobile phone detection, etc.
- Facial recognition for people not wearing hard hat
- H.265+ compression effectively reduces the storage space by up to 75%
- 8 SATA interfaces (up to 10 TB capacity per HDD) and 1 eSATA interface are provided for HDD connection
- HDD hot swap with RAID0, RAID1, RAID5, RAID6 and RAID10 storage scheme configurable
- 2 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- 4K (4096 × 2160) HDMI output
3 years warranty
Description
- System Parameter
- Video Input Channel32
- Incoming Bandwidth320 Mbps
- Video Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
- Video Parameter
- Video Input32-ch
- Video Output2-ch HDMI，2-ch VGA
- Video Decoding FormatH.265;H.264;H.265+;H.264+
- Decoding Capability16×1080P
- Synchronous PlaybackUp to 16-ch
- Audio Parameter
- Audio Output2-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Smart Analysis
- Face Picture List Library32 libraries, up to 100, 000 pictures in total
- HDD Management
- HDD No.8 SATA interfaces
- Max. Capacity Per HDDUp to 10 TB capacity for each disk
- RAID LevelRAID0, RAID1, RAID5, RAID6, RAID10

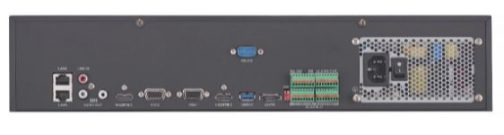

- External Port
- Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- Serial PortRS-232; RS-485; Keyboard
- USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
- Alarm Input/Output16/8
- General Standard
- PowerAC 220V 200W
- Consumption (Without HDD)≤70W
- Working Temperature-10℃～＋55℃
- Working Humidity10％～90％
- Chassis2U
- Dimension445 × 465 × 88 mm (17.5″× 18.3″ × 3.5″)
- Weight (Without HDD)≤10Kg
