ZKteco access control รุ่น IN05 & IN05-A

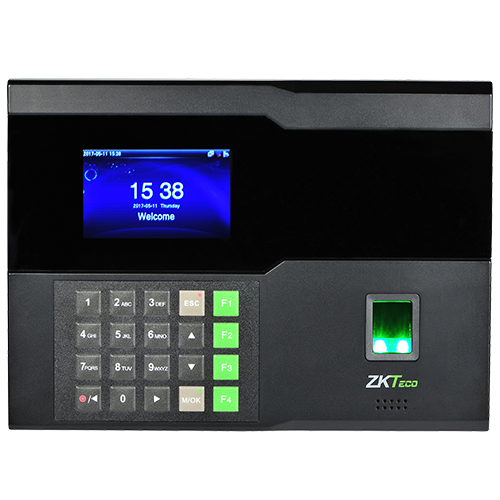

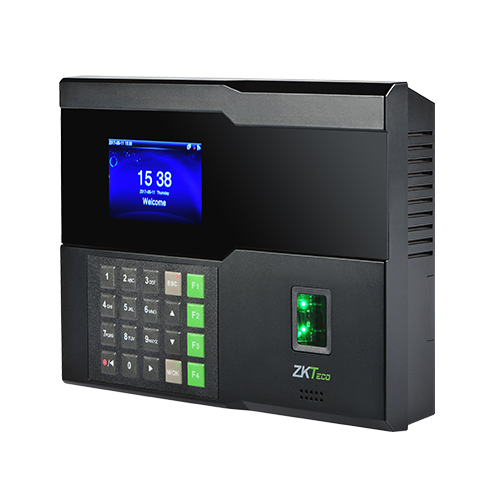

IN05 is a fingerprint identification time & attendance and access control terminal, which can connectwith third party electric lock, door sensor and exit button etc.
Communicating via Wi-Fi, TCP/IP, 3G and USB host, it ensures a smooth connection and data transfer.
It’s associated with ZK new fingerprint reader, the operation
Description
| Product | IN05 | IN05-A | |
| Main | Biometric | Fingerprint | |
| RF Optional | 125kHz EM / 13.56MHz MF | ||
| Capacity | Max User(1:N) | 10,000 | |
| Max Fingerprint (1:N) | 3,000 standard / 10,000 Optional | ||
| Max Record | 100,000 | ||
| Interface | TCP/IP | 10/100 M | |
| PoE Optional | 802.3 at 28W | ||
| Wi-Fi | 802.11 B/G/N | ||
| 3G Optional | WCDMA | ||
| USB | USB 2.0 (Host) | ||
| RS232 | 1 port for external printer | ||
| RS485 | 1 port for FP reader | ||
| Relay | 2 relays | ||
| Wiegand | 1ch In & Out | ||
| Input | 1 Input | ||
| Hardware | LCD | 3.0” Color LCD | |
| Sound | 24-bit | ||
| Operating Temp. | 0 °C – 45 °C | ||
| Operating Humidity | 20% ~ 80% | ||
| Power | DC 12V 1.5A | DC 12V 3A | |
| Dimensions(W x H x D mm) | 213*155*107.81mm | ||
| Certificates | CE, FCC, RoHS | ||
| Function | Standard | Automatic Status Switch, Self-Service Query, DST, T9 Input, 9 Digit | |
| User ID, Scheduled Bell, Photo ID, Lock, sensor, Exit button | |||
| Optional | ID / MF, ADMS | ||
| Compatibility | ZKTime.net 3.0, ZKTime.web 2.0, ZKTime 5.0, ZKAccess 3.5 | ||
