| Model | LPRC100 |
| License Plate Recognition Specifications | |
| Recognition Accuracy | Day≥99.9%; Night≥99.7% |
| Recognition Time | ≤200ms (average time) |
| Recognition Distance | 2-10meters (recommend distance is 3.5-4m) |
| Adaptable Speed Of Car | ≤15km/h |
| Output Information | License plate number, License plate picture, Access time |
| Supported Countries | Thailand, Argentina, Mexico, Chile, Colombia, Turkey, Saudi Arabia, South Africa, Brazil, Peru, Mongolia, Malaysia, Indonesia, Vietnam, UAE, Oman, Egypt, EU, Korea, Pakistan, etc. |
| Camera Parameter | |
| CPU | A7@600 MHz, 32 KB I-cache, 32 KB D-cache/128 KB |
| Flash | NOR FLASH 32M |
| RAM | DDR3, 256M |
| Image Sensor | 1/2.8’’ SONY 290 COMS |
| Lens | 2MP, 3.2mm -11.1mm, Auto focus |
| Resolution | 1920*1080 pixel |
| Minimum Illuminance | 0.1Lux (standard) |
| Video Compression Standard | H264 |
| Video Compression Bit -Rate | 32Kbps -16Mbps |
| Double Code Stream | Main stream: 1920*1080, 1280*720 (optional), 1-25frames/s (default: 25) |
| Sub stream: 704*576, 640*480, 320*240 (optional), 1-25frames/s (default: 25) | |
| Communication | TCP/IP (10/100Mbps) |
| I/O Interface | Two relay, two RS485 outputs, audio in/out, barrier status input, wiegand in &out |
| Storage | TF Card (default 8G, max support 32G) |
| Reset | Reset device parameters |
| Working Modes | Video trigger |
| Protection Level | IP65 |
| Working Voltage | 12V DC |
| Working Temperature | -20°C ~ 55°C |
| Working Humidity | ≤ 90% |
ZKteco
กล้องวงจรปิด ZKteco LPRC100

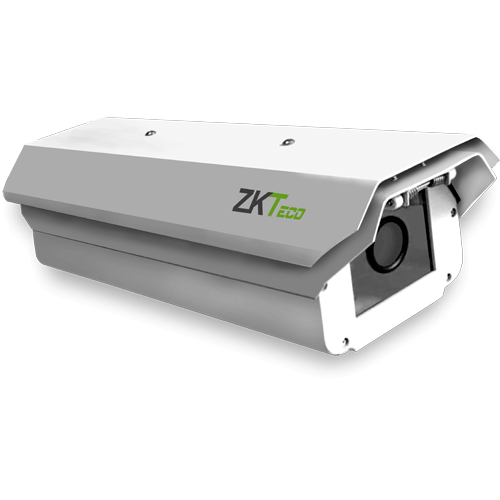

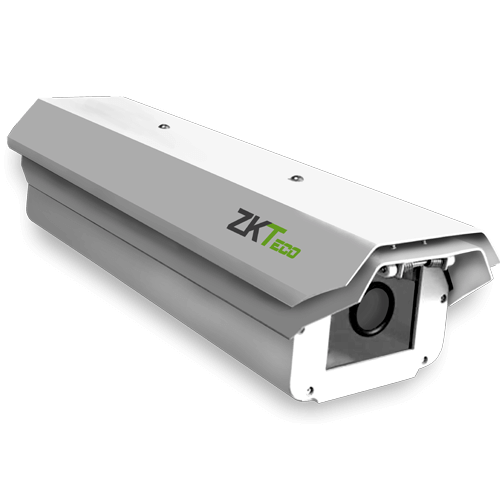

LPRC100 is the first generation of license plate recognition camera of ZKTeco.
It adopts the self-developed license plate recognition algorithm. Based on years of industry experience in LPR camera hardware platform and professional parking management software, LPRC100 is developed to identify the moving license plate
accurately in complex environment, take photographs of plates, and send the information back to the realtime software platform; the software platform will automatically determine whether the vehicles is allowed to gain access. Users may choose to manually manage vehicles access with the real-time platform too.
Besides, users can customize the charging rules through our software to pay the parking fees according to their vehicle types.
