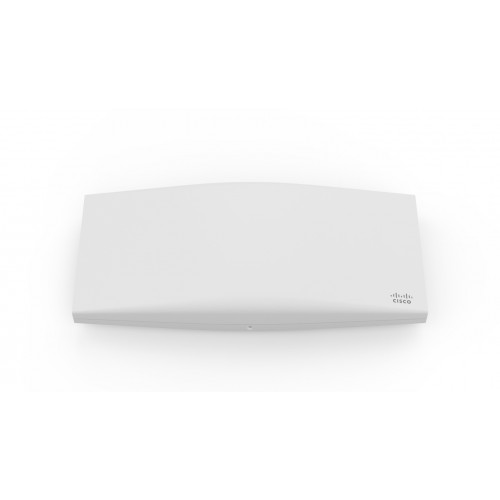

Cisco Meraki Cloud-managed Wi-Fi 6 (802.11ax) รุ่น MR36-HW
MANUFACTURER: Cisco Meraki
P/N: MR36-HW
Description
- Radios
- 2.4 GHz 802.11b/g/n/ax client access radio
- 5 GHz 802.11a/n/ac/ax client access radio
- 2.4 GHz and 5 GHz dual-band WIDS/WIPS, spectrum analysis, and location analytics radio
- 2.4 GHz Bluetooth Low Energy (BLE) radio with Beacon support
- Concurrent operation of all four radios
- Max aggregate frame rate: 1.7 Gbps
- Supported frequency bands (country-specific restrictions apply):
- 2.412-2.484 GHz
- 5.150-5.250 GHz (UNII-1)
- 5.250-5.350 GHz (UNII-2)
- 5.470-5.600, 5.660-5.725 GHz (UNII-2e)
- 5.1725-5.825 GHz (UNII-3)
- Antenna
- Integrated omni-directional antenna (5.4 dBi gain at 2.4 GHz, 6 dBi gain at 5 GHz)
- Individual antenna elements for each radio
- 802.11ax, 802.11ac Wave 2, and 802.11n Capabilities
- UL/DL-OFDMA, UL-OFDMA, TWT support, BSS coloring
- 2×2 multiple input, multiple output (MIMO) with 4 spatial streams
- SU-MIMO, UL MU-MIMO and DL MU-MIMO support
- Maximal ratio combining (MRC) and beamforming
- 20 and 40 MHz channels (802.11n) 20, 40, and 80 MHz channels (802.11ac Wave 2)
- Up to 1024 QAM on both 2.4 GHz and 5 GHz bands
- Packet aggregation
- Power
- Power over Ethernet: 37-47 V (802.af compliant)
- Alternative 12 V DC input
- Power consumption: 15 W max (802.3af)
- Power over Ethernet injector and DC adapter sold separately
- Interfaces
- 1x 10/100/1000 BASE-T Ethernet
- 1× DC power connector (5.5 mm × 2.5 mm, center positive)
- Mounting
- All standard mounting hardware included
- Desktop, ceiling and wall mount capable
- Ceiling tile rail (9/16, 15/16, or 1 1/2\\\\\\\\\\\\\\\” flush or recessed rails), assorted cable junction boxes
- Bubble level on mounting cradle for accurate horizontal wall mounting
- Physical Security
- Two security screw options included
- Kensington lock hard point
- Concealed mount plate with anti-tamper cable bay
- Environment
- Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
- Humidity: 5 to 95% non-condensing
- Physical Dimensions
- 9.84” x 4.72” x 1.42” (25 cm x 12 cm x 3.6 cm), not including deskmount feet or mount plate
- Weight: 17.35 oz (0.5 kg)
