- Radios
- 2.4 GHz 802.11b/g/n/ax client access radio
- 5 GHz 802.11a/n/ac/ax client access radio
- 2.4 GHz and 5 GHz dual-band WIDS/WIPS, spectrum analysis, and location analytics radio
- 2.4 GHz Bluetooth Low Energy (BLE) radio with Beacon and BLE scanning support
- Concurrent operation of all three radios
- Supported frequency bands (country-specific restrictions apply):
- 2.412-2.484 GHz
- 5.150-5.250 GHz (UNII-1)
- 5.250-5.350 GHz (UNII-2)
- 5.470-5.600, 5.660-5.725 GHz (UNII-2e)
- 5.1725-5.825 GHz (UNII-3)
- Antenna
- List of compatible antennas: MA-ANT-3-A6/B6/C6/D6/E6/F6
- Individual antenna elements for each radio
- 802.11ax, 802.11ac Wave 2 & 802.11n Capabilities
- UL/DL OFDMA, TWT support, BSS coloring
- 4×4 multiple input, multiple output (MIMO) with four spatial streams
- UL/DL SU-MIMO and MU-MIMO support
- Maximal ratio combining (MRC) and beamforming
- 20 and 40 MHz channels (802.11n); 20, 40, and 80 MHz channels (802.11ac Wave 2); 20, 40 and 80 MHz channels (802.11ax)
- Up to 1024 QAM on both 2.4 GHz and 5 GHz bands
- Packet aggregation
- Power
- Power over Ethernet: 42.5 – 57 V (802.3at compatible)
- Alternative 12 V DC input
- Power consumption: 30W max (802.3at)
- Power over Ethernet injector and DC adapter sold separately
- Interfaces
- 1× 10/100/1000/2.5G BASE-T Ethernet (RJ45)
- 1× DC power connector (5.5 mm × 2.5 mm, center positive)
- Mounting
- All standard mounting hardware included
- Desktop, ceiling and wall mount capable
- Ceiling tile rail (9/16, 15/16, or 1 1/2\” flush or recessed rails), assorted cable junction boxes
- Bubble level on mounting cradle for accurate horizontal wall mounting
- Physical Security
- Two security screw options included
- Kensington lock hard point
- Concealed mount plate with anti-tamper cable bay
- Environment
- Operating temperature: 32 °F to 122 °F (0 °C to 50 °C)
- Humidity: 5 to 95% non-condensing
- Physical Dimensions
- 9.84” x 4.72” x 1.42” (30.72 cm x 15.62 cm x 3.49 cm), not including desk mount feet or mount plate
- Weight: 29.98 oz (0.85 kg)
- Security
- Integrated Layer 7 firewall with mobile device policy management
- Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal
- Flexible guest access with device isolation
- VLAN tagging (802.1Q) and tunneling with IPSec VPN
- PCI compliance reporting
- WEP**, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X, WPA3 – Personal**, WPA3 – Enterprise**, WPA3 – Enhanced Open (OWE)**
- EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM
- TKIP and AES encryption
- Enterprise Mobility Management (EMM) and Mobile Device Management (MDM) integration
- Cisco ISE integration for guest access and BYOD posturing
- Quality of Service
- Advanced Power Save (U-APSD)
- WMM Access Categories with DSCP and 802.1p support
- Layer 7 application traffic identification and shaping
- Mobility
- PMK, OKC, and 802.11r for fast Layer 2 roaming
- Distributed or centralized Layer 3 roaming
- Analytics
- Embedded location analytics reporting and device tracking
- Global L7 traffic analytics reporting per network, per device, and per application
- LED Indicators
- 1 power/booting/firmware upgrade status
- Regulatory
- RoHS
- For additional country-specific regulatory information, please contact Meraki Sales
- Warranty
- Lifetime hardware warranty with advanced replacement included
- Compliance
- EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC
- Ordering Information

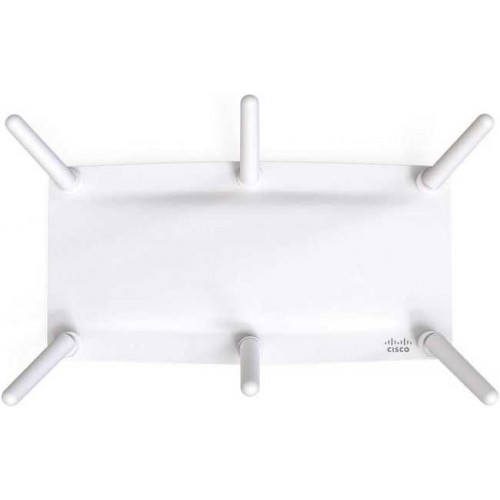

- MR46E-HW: Meraki MR46E Cloud Managed 802.11ax AP
- MA-PWR-30W-XX: Meraki AC Adapter for MR Series (XX = US/EU/UK/AU)
- MA-INJ-4-XX: Meraki Gigabit 802.3at Power over Ethernet Injector (XX = US/EU/UK/AU)
- MA-INJ-5-XX: Cisco Meraki 802.3at Power over Ethernet Injector (XX = US/EU/UK/AU)
- MA-ANT-3-A6: Meraki Dipole Antenna (3.8/5.5 dBi)
- MA-ANT-3-B6: Meraki Dipole Antenna (3/5.7 dBi)
- MA-ANT-3-C6: Meraki Panel Omni Antenna
- MA-ANT-3-D6: Meraki Downtilt Panel Omni Antenna
- MA-ANT-3-E6: Meraki Wide Patch Antenna
- MA-ANT-3-F6: Meraki Narrow Patch Antenna
- Note: Meraki access point license required
- ** software features can be enabled via firmware updates
