RG-E-130(GE) Reyee Wireless

roduct Specification

Overview

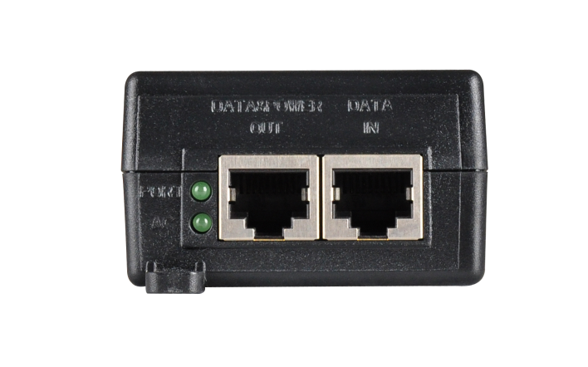

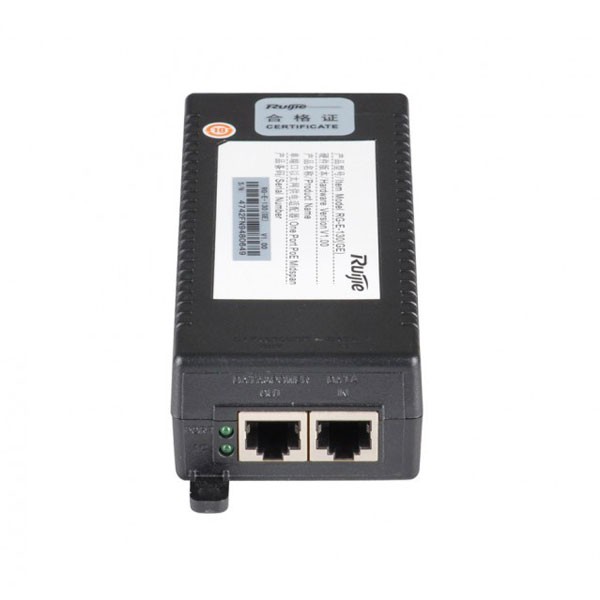

Ruijie RG-E-130(GE) POE Injector 802.3at POE+ 53VDC 30W Port Gigabit สำหรับจ่ายไฟให้กับอุปกรณ์ที่ใช้ POE มาตรฐาน 802.3af/at, Port Lan ความเร็ว Gigabit

Ports

10/100/1000 Mbps Copper port (RJ-45)
10/100/1000 Mbps PoE Copper port (RJ-45)

Power

Output Power Voltage: 53V DC
Output Port Power: 30W

Dimensions
(W x H x L) (mm)

87.9 x 51.3 x166

Weight

350g

Temperature

Operating Temperature: 0°C to 45°C
Storage Temperature: -30°C to 85°C

Humidity

Operating Humidity: 5% to 90% (non-condensing)
Storage Humidity: 5% to 95% (non-condensing)

Altitude

Operating Humidity: 5% to 90% (non-condensing)
Storage Humidity: 5% to 95% (non-condensing)

Altitude

Operating Altitude: 0 to 3048m

Regulatory Compliance

IEEE 802.3at, IEEE 802.3af RoHS Compliant, WEEE Compliant, CE

MTBF

>100,000 hours @25°C

Electromagnetic Emission & Immunity Safety Approval

FCC Part 15, EN 55022 Class B (Emissions) EN 55024 (Immunity), VCCI, UL/cUL Per EN 60950-1, GS Mark Per EN 60950-1
