RG-EW1200G Pro Reyee Wireless

Product Specification

Overview

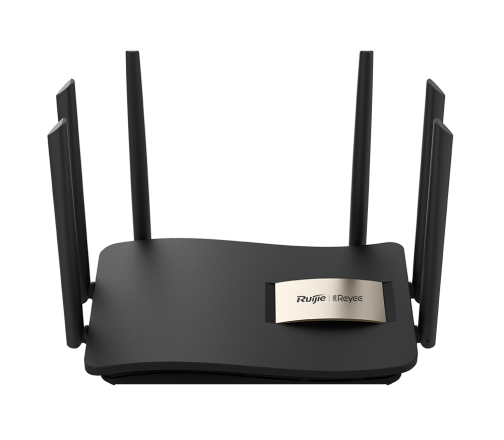

Reyee RG-EW1200G PRO 1300M Dual-band Gigabit Wireless Mesh Router 802.11ac Wave2 MU-MIMO เสา 6dBi x 6

รองรับการทำ WIFI Mesh แค่กดปุ่ม 1 ครั้ง

Managed และ Monitor by Ruijie Cloud มาพร้อม Cloud License ตลอดชีพ

Main features

Routing mode: PPPoE / DHCP / static IP; relay mode: wired relay / wireless relay
Obtain PPPoE account from the old router
Wi-Fi dual-band separation/ integration
Guest Wi-Fi; smart home Wi-Fi; wireless network isolation
Static DHCP address
Virtual server: port mapping, DMZ, etc.
DDNS: Oray (dyndns, NoIP: Future)
UPnP

Network security

Wireless security: WPA-PSK/WPA2-PSK encryption
ARP protection: IP/MAC binding
SSID hiding
Preventing rogue devices (Blacklist/whitelist)
Internet access control

Advanced features

Reyee Mesh: Supports zero-configuration networking of multiple devices, and supports automatic switching between wired and wireless networking for multiple devices
Wi-Fi optimization: Wi-Fi roaming, 5G priority, acceleration mode, channel adjustment, power adjustment, roaming sensitivity adjustment
Bandwidth management: hardware NAT, intelligent bandwidth allocation
Auto network inspection, fault diagnosis
Software upgrade: Automatic & manual cloud software upgrade

Management mode

Local web page
Cloud management: MACC cloud platform
Ruijie Cloud app: iOS version, Android version

Wireless specifications

2.4GHz 2*2: maximum rate 400Mbps; 5GHz 2*2: maximum rate 867Mbps
Antenna: External 6dBi non-removable omnidirectional antennas
Support 802.11a/b/g/n/ac/ac Wave2, MU-MIMO
Frequency band: Independent 2.4GHz and 5GHz modules, supporting dual frequency integration
Support beamforming
Wi-Fi channel:
2.4GHz Channel： 1,2,3,4,5,6,7,8,9,10,11,12,13
5GHz Channel： 36,40,44,48,149,153,157,161,165

Ports

1 Port 10/100/1000M WAN port (Auto MDI/MDIX)
3 Port 10/100/1000M LAN ports (Auto MDI/MDIX)
1 blue system LED indicator, 4 network port LED indicators
1 device pairing/factory reset button
1 power input interface

Physical specifications

Dimensions：220x140x36mm (W×D×H, excluding antennas)
Weight：0.98kg（entire equipment including packaging）

Power supply

Power specification: DC12V 1.5A
Maximum power: < 14W

Operating environment

Operating temperature: 0-45C
Storage temperature: -40-70C
Operating humidity: 5%-95%RH (non-condensing)
Storage humidity: 5%-95%RH (non-condensing)
