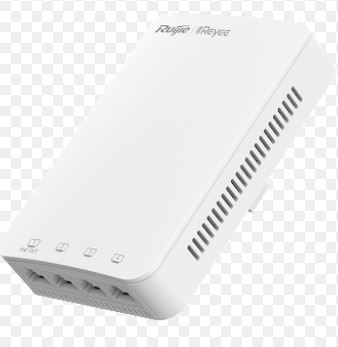

RG-RAP1200(P) Reyee Wireless
AC1300 Dual Band gigabit wall plate AP, 4 front LAN ports, including 1 standard 802.3af PoE out port, built-in antennas, 1 gigabit uplink port, dual-band 2.4GHz/5GHz, 802.11a/b/g/n/ac Wave1/Wave2, up to 1267Mbps access rate per AP; support AP/ routing mode, Layer 3 roaming, Ruijie Cloud app management; Support 802.3af/at PoE (PoE and local power adapters sold separately)
3 Years Warranty
Description
| Product Specification | |
| Overview | Ruijie Reyee RG-RAP1200(P) Dual-Band Gigabit Wall Plate Access Point 802.11ac 1200
4 Port Lan Gigabit รองรับการ Managed แบบ Stanalone, Free Cloud Control, Hardware Control |
| Hardware specifications | |
| Radio | Dual-stream dual-band |
| Protocol | Concurrent 802.11ac wave2, wave1, 802.11a/b/g/n |
| Operating Bands | 802.11b/g/n : 2.4G-2.4835GHz 802.11a/n/ac : 5G : 5.150-5.350GHz, 5.725-5.850GHz |
| Antenna | PF antenna (2.4G: 2dBi, 5G: 2dBi) |
| Spatial Streams | 2.4G 2x2MIMO 5G 2x2MIMO |
| Max Throughput | 2.4G: up to 400Mbps 5G: up to 867Mbps Access rate per AP: 1.267Gbps |
| Modulation | OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM |
| Receive Sensitivity | 11b：-91dBm (1Mbps), -88dBm (5Mbps), -85dBm (11Mbps)
11a/g：-89dBm (6Mbps), -80dBm (24Mbps), -76dBm (36Mbps), -71dBm (54Mbps), 11n：-83dBm@MCS0, -65dBm@MCS7, -83dBm@MCS8, -65dBm@MCS15 11ac HT20：-83dBm (MCS0), -57dBm (MCS9) |
| Maximum Transmit Power | 5.725～5.850GHz：≤18dBm (EIRP) 5.150～5.350GHz：≤18dBm (EIRP) 2.4～2.4835GHz：≤18dBm (EIRP) |
| Adjustable Power | 1dBm |
| Dimensions | 126mm×86mm×50mm |
| Weight | 0.24kg |

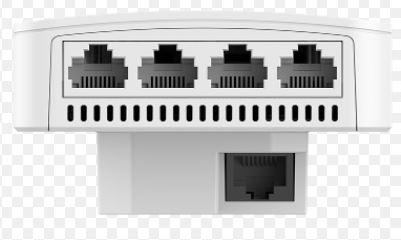

| Service Ports | Front： 4 10/100/1000Base-T Ethernet ports LAN1 port supports IEEE.802.3af PoE OUT Rear： |
| Management Port | N/A |
| LED Indicator | 1 LED indicator |
| Power Supply | Support PoE (802.3af/at) |
| Power Consumption | ≤ 8W |
| Environment | Operating temperature: -30°C～65°C Storage temperature: -40°C～85°C Operating humidity: 0%～100% (non-condensing) Storage humidity: 0%～100% (non-condensing) |
| Installation | Wall plate installation |
| Safety Standard | GB4943, IEC 62368-1 |
| EMC Standard | GB9254，EN301 489，EN50155，EN50121，EN55032，EN61000，EN55035 |
| Vibration Standard | IEC61373 |
| Radio Standard | SRRC certification, EN300 328, EN301 893 |
| MTBF | >250000H |
| Software Features | |
| Operating Mode | AP mode and routing mode |
| WLAN | Maximum number of clients: 110 Recommended number of clients: 80 Up to 8 SSIDs Support SSID hiding Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID SSID-based and radio-based STA limit Support Layer 2 user isolation |
| Roaming | Support Layer 2 and Layer 3 roaming |
| Security | Support PSK authentication Support static blacklist and whitelist Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption |
| Routing | Support static IP address, DHCP, PPPoE Dial Up |
| Management and maintenance | Support unified networking of all network equipment Support local or remote management with Ruijie Cloud app Support local management with web Support remote management with Ruijie Cloud platform |
| รับประกัน | 3 ปี |
