ZKteco access control รุ่น SC700

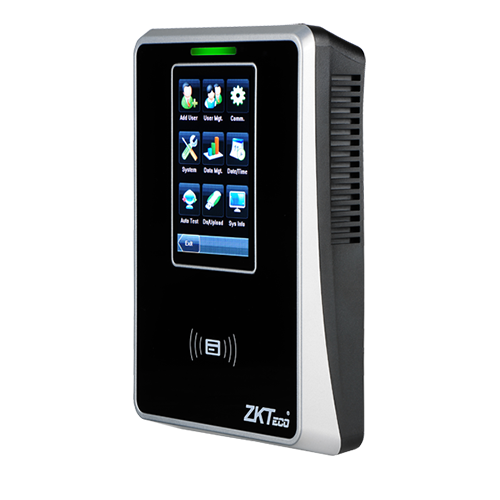

SC700 is a 125 KHz proximity access control terminal incorporated with 3’’ TFT LCD. The color display and touch screen operation offer a user-friendly and easy menu management.
When connected with PC through Ethernet, SC700 is managed by ZKAccess 3.5 software. The software provides 2 applications, the access control and time attendance. It can also operate on standalone mode, and transfer data by USB flash drive.
The latest version of SC700 includes Wiegand Input port to connect external proximity reader and it can be used as a controller’s external reader using Wiegand Out port. As a professional access control device, it allows time zones and groups, holiday managements, linkage, anti-passback functions etc.
Description
| Firmware | PULL SDK |
| Display | 3 Inches Touch Screen |
| ID Card Capacity | 30,000 |
| Logs Capacity | 100,000 |
| Communication | TCP/IP, USB Host |
| Standard Functions | ID card, Automatic Status Switch, T9 input, Multi-verification Method |
| Access Control Interface | 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm |
| Wiegand Inferface | Wiegand input&output |
| Optional Functions | Mifare Card |
| Power Supply | 12V/3A |
| Operating Temperature | 0°C – 45°C |
| Operating Humidity | 20% – 80% |
| Dimensions (H×W×D) | 160×104.7×36mm |
