Switch Hub รุ่น WSC056
FEATURES
- Features
•Main Function: Provide 4×10/100 Base-T Ethernet
•ports(PoE) , 2×10/100 Base-T Ethernet ports
•Compliance with standards: IEEE802.3 ,IEEE802.3u,
•IEEE802.3ab, IEEE802.3z, IEEE802.3X, IEEE802.3 af/at
•PoE Power Display : Support 4 LED digital tube
•display machine PoE power usage. whole machine
•reaches 72W PoE power output
•One-key Smart: Support three kinds of working
•modes (100m, VLAN, 250m)
•Safeguard: short circuit, broken circuit, over-voltage,
•over-current, under-voltage, surge
•Operating temperature: -40℃ ~ 55℃ (-40~+131F) - รับประกัน 3 ปี
Description
4 Port 100M standard AI Smart POE Switch (AC220V)
Technical
Parameters
Standard
IEEE 802.3 af/at use for Power-over-Ethemet
IEEE 802.3 use for 10BaseT
IEEE 802.3u use for 100BaseT (X)
IEEE 802.3x flow control
interface
RJ45 POE Port
4 10/100BaseT(x)Support SPOE transmission and data
communication
RJ45 Uplink 2 10/100BaseT(x)Support data communication
SPOE
Corresponding to
the foot
Defalt V+,V+,V-,V- Corresponding to the foot1236 (Endspan) AF/AT
Optional power supply V+,V+,V-,V- Corresponding to the foot4578 (Midspan) AT/AT
POE Feature
compatible PD
1236 power Standerd PD,4578 power standard PD and
non-standard PD (OPTIONAL)
Safeguard
short circuit, broken circuit, overvoltage, overcurrent,
undervoltage, surge
Power protection
mechanism
power on pin 1-4 orderly to prevent a boot failure caused
by peak voltage
steady power supply
Mode mean port 1-4 POE voltage, stable supply voltage
AI Smart POE Mode 45+ 78- (Support standard 48V PD @ non-standard 48V PD
@PC etc equipment used simultaneously)
POE Mode
12+ 36- (Support standard 48V PD @PC etc equipment
used simultaneously)
Indicator light LED P System Power, E Extend, V VLAN , Link , PoE
Button switch
Defalt EXTEND OF:PoE 100M/ON:PoE 250M
Optional
VLAN OF:1-4 interface communication/ON:1-4interface non
intercommunication
Network
Network characteristics
1-4 port reduce speed shut down100M/100M reduce
Speen turn on : 250M/10M
bandwidth 1.6G (Non-blocking high-speed data exchange)
Network delay Maximum no more than 20 milliseconds (100 to 100Mbps)
Packet forwarding rate 768KB
Address database 1K
Forwarding mode Store and forward
Forwarding rate 10BASE-T:14880pps/port
100BASE-TX:148800pps/port
MAC address Automatic learning
flow control Full duplex IEEE802.3xFlow Control ; BackpressureHalf –
duplex back pressure flow control
Bit error rate <1/1000000000
Power supply

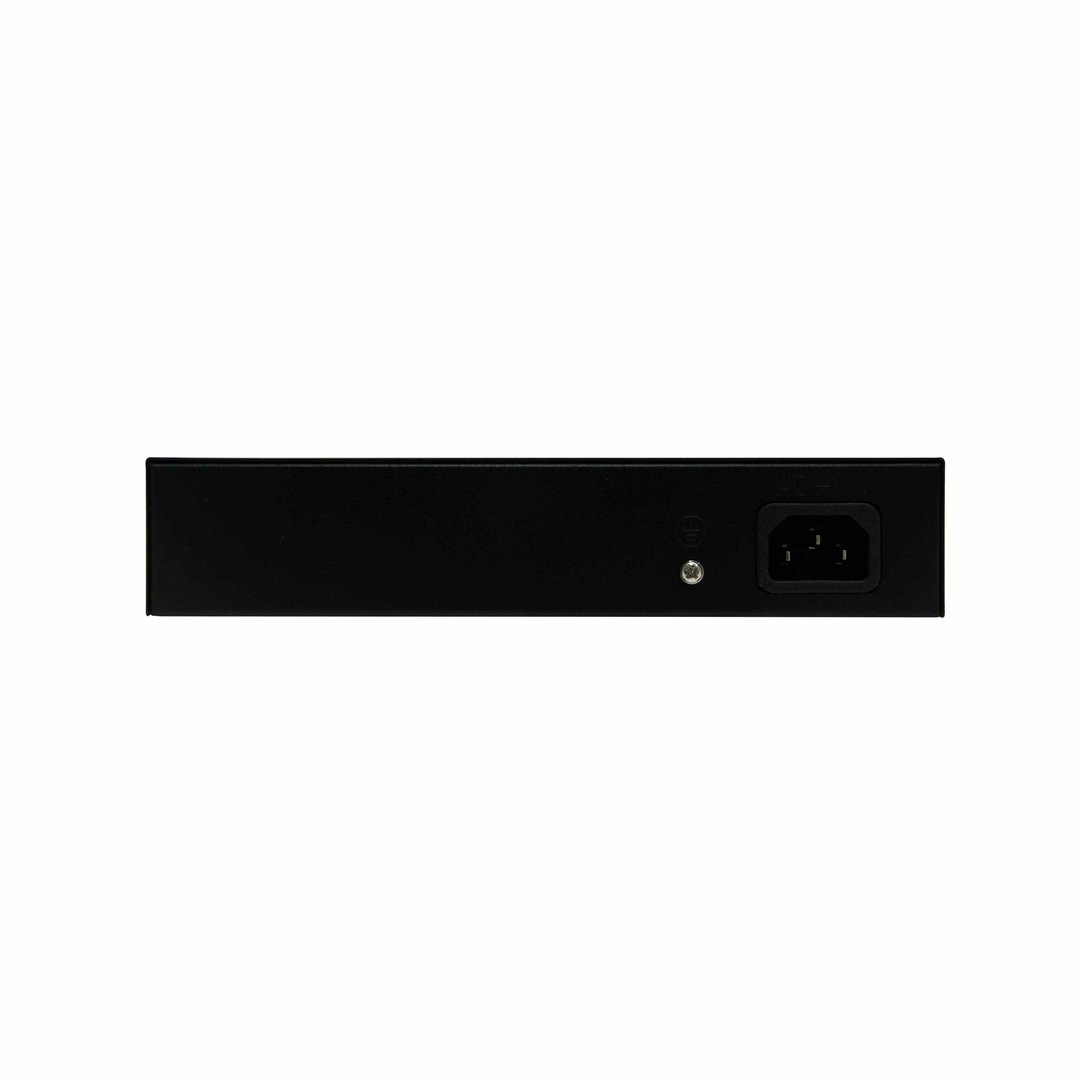

Input voltage AC220V build-in power
input power DC48V72W @IEEE802.3AF/@IEEE802.3AT
Port output power 15.4W@IEEE802.3AF/25W@IEEE802.3AT
power distance 250M (non- shield lane) turn on EXTEND
mechanical
properties
Housing Iron shell , IP30 Protection class
Dimension 200(L)×155(W)×40(H)
Installation method Desktop installation / wall mounting (optional )
working
environment
Operating temperature -40 ~ 55℃ (-40~+131F)
Storage temperature -40 ~ 75 ℃ (-68 ~ + 199F)
Relative humidity 5%~95% (No condensation)
Trouble-free period MTBF An average of 100,000 hours trouble-free time to work
