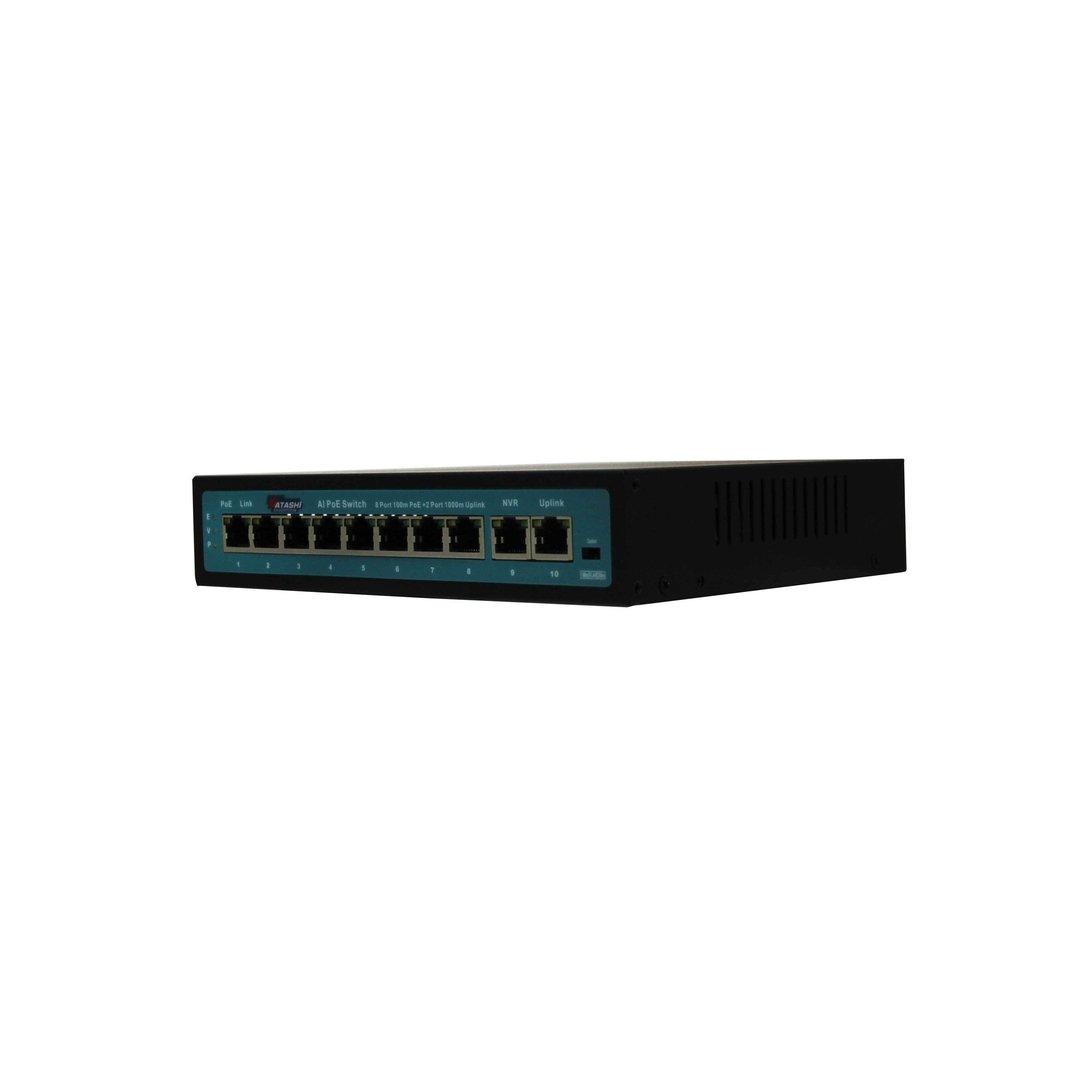

Switch Hub Watashi WSC057-A
Features
•Main Function: Provide 4×10/100 Base-T Ethernet
•Main Function: Provide 8×10/100 Base-T Ethernet ports(PoE) ,
2×10/100/1000 Base-T Ethernet ports
•Compliance with standards: IEEE802.3 ,IEEE802.3u,
IEEE802.3ab, IEEE802.3z, IEEE802.3X, IEEE802.3 af/at
•PoE Power Display : Support 8 LED digital tube display
machine PoE power usage. whole machine reaches 144W
PoE power output
•One-key Smart: Support three kinds of working modes
(100m, VLAN, 250m)
•Safeguard: short circuit, broken circuit, over-voltage, overcurrent, under-voltage, surge
•Operating temperature: -40℃ ~ 55℃ (-40~+131F)
รับประกัน 3 ปี
Description
8port100M+2port1000M standard AI Smart POE Switch (AC220V)
Technical Parameters Standard
IEEE 802.3 af/at use for Power-over-Ethemet
IEEE 802.3 use for 10BaseT
IEEE 802.3u use for 100BaseT(X)
IEEE 802.3x flow control
interface
RJ45 POE Port 8 10/100BaseT(x)Support SPOE transmission and data communication
RJ45 Uplink 2 100/1000BaseT (x) Support data communication
SPOE Corresponding
to the foot
Defalt V+,V+,V-,V- Corresponding to the foot1236(Endspan)AF/AT
Optional power supply V+,V+,V-,V- Corresponding to the foot4578(Midspan)AT/AT
POE Feature
compatible PD
1236 power standerd PD,4578 power standard PD and non-standard
PD(OPTIONAL)
Safeguard short circuit, broken circuit, over voltage, over current, under voltage, surge
Power protection
mechanism
power on pin 1-8 orderly to prevent a boot failure caused by peak voltage
steady power supply Mode mean port 1-8 POE voltage, stable supply voltage
AI Smart POE Mode 45+ 78- (Support standard 48V PD @ non-standard 48V PD @PC etc
equipment used simultaneously)
POE Mode 12+ 36- (Support standard 48V PD @PC etc equipment used simultaneously)
Indicator light LED P System Power, E Extend, V VLAN , Link , PoE
Button switch
Defalt EXTEND OF: PoE 100M/ON: PoE 250M
Optional
VLAN OF: 1-8 interface intercommunication/ON:1-8interface non
intercommunication
Network
characteristics
Network characteristics
1-8 port reduce speed shut down100M/100M reduce speen turn on:250M/
10M
bandwidth 16Gv(Non-blocking high-speed data exchange)
Network delay Maximum no more than 20 milliseconds(100 to 100Mbps)
Packet forwarding rate 1.44M
Address database 4K
Forwarding mode Store and forward
Forwarding rate 10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port
1000BASE-TX: 1488000pps/port
MAC address Automatic learning
flow control Full duplex IEEE802.3xFlow Control ; BackpressureHalf – duplex back
pressure flow control
Bit error rate <1/1000000000
Power supply
Input voltage AC220V build-in power
input power DC48V144W @IEEE802.3AF/@IEEE802.3AT
Port output power 15.4W@IEEE802.3AF/25W@IEEE802.3AT
power distance 250M (non- shield lane) turn on EXTEND
mechanical
properties
Housing Iron shell, IP30 Protection class
Dimension 200(L)×155(W)×40(H)
Installation method Desktop installation / wall mounting (optional )
working environment
Operating temperature -40 ~ 55℃(-40~+131F)
Storage temperature -40 ~ 75 ℃ (-68 ~ + 199F)
Relative humidity 5%~95% (No condensation)
Trouble-free period MTBF An average of 100,000 hours trouble-free time to work
