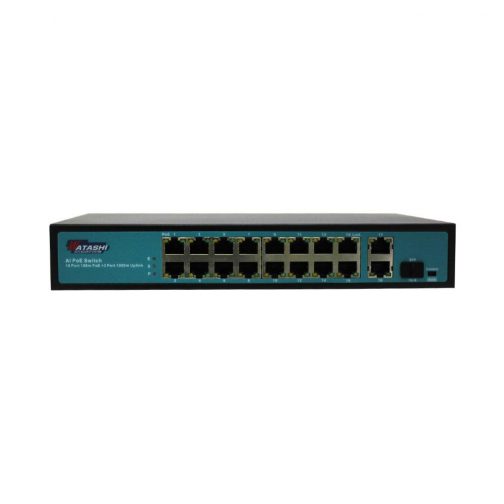

Switch Hub Watashi WSC058-A
Switch Hub รุ่น WSC058-A 16Port 100M +3Port 1000M Standard AI Smart PoE Switch
FEATURES
- Main Function: Provide 16×10/100 Base-T Ethernet,ports(PoE) , 2x1000M Base-T Ethernet Port 1SFPx1000M
• Base-T ports, *Compliance with standards: IEEE802.3 ,IEEE802.3u,IEEE802.3ab, IEEE802.3z, IEEE802.3X, IEEE802.3 af/at
• *PoE Power Display : Support 16 LED digital tube, display machine PoE power usage. whole machine
• reaches 300W PoE power output
• One-key Smart: Support three kinds of working modes, (100m, VLAN, 250m) , *Safeguard: short circuit, broken circuit, over-voltage, over-current, under-voltage, surge *Operating temperature: -40℃ ~ 55℃ (-40~+131F) - รับประกัน 3ปี
Description
16port100M+3port1000M standard AI Smart POE Switch (AC220V)
Technical
Parameters
Standard IEEE 802.3 af/at use for Power-over-Ethemet
IEEE 802.3 use for 10BaseT
IEEE 802.3u use for 100BaseT(X)
IEEE 802.3ab use for 1000BaseT(X)
IEEE 802.3x flow control
interface
RJ45 POE Port
16 10/100BaseT(x)Support SPOE transmission and data
communication
RJ45 Uplink 2 100/1000MBaseT(x)Support data communication
SFP Uplink 1 1000MBaseT(x)Support optical data communication
SPOE Corresponding
to the foot
Defalt V+、V+、V-、V- Corresponding to the foot1236 (Endspan) AF/AT
Optional power supply V+、V+、V-、V- Corresponding to the foot4578(Midspan)AT/AT
POE Feature
compatible PD 1236 power standerd PD、4578 power standard PD and nonstandard
PD (OPTIONAL)
Safeguard
short circuit、broken circuit、overvoltage、overcurrent、
undervoltage、surge
Power protection mechanism
power on pin 1-16 orderly to prevent a boot failure caused by peak
voltage
steady power supply Mode mean port 1-16 POE voltage, stable supply voltage
AI Smart POE Mode 45+ 78- (Support standard 48V PD @ non-standard 48V PD @PC etc
equipment used simultaneously)
POE Mode
12+ 36- (Support standard 48V PD @PC etc equipment used
simultaneously)
Indicator light LED P System Power、E Extend、S Fiber 、Link 、PoE
Button switch Defalt EXTEND OF: PoE 100M/ON: PoE 250M
Network
characteristics
Network characteristics 1-16port10M250M/100M100M @17-18port100M 19port 100KM (offer
different optical fiber module)
bandwidth 16G (Non-blocking high-speed data exchange)
Network delay Maximum no more than 20 milliseconds(100 to 100Mbps)
Packet forwarding rate 11M
Address database 4K
Forwarding mode Store and forward
Forwarding rate 10BASE-T：14880pps/port
100BASE-TX：148800pps/port
1000BASE-TX：1488000pps/port
MAC address Automatic learning
flow control
Full duplex IEEE802.3xFlow Control ; BackpressureHalf – duplex back
pressure flow control
Bit error rate <1/1000000000
Power supply
Input voltage AC220V build-in power
input power DC48V300W @IEEE802.3AF/@IEEE802.3AT
Port output power 15.4W @IEEE802.3AF/25W @IEEE802.3AT
power distance 250M (non- shield lane) turn on EXTEND
mechanical
properties
Housing Iron shell、IP30 Protection class
Dimension 270(L)×203(W)×46(H)
Installation method Desktop installation / wall mounting/ Bracket (optional )
working
environment
Operating temperature -40 ～ 55℃ (-40～+131F)
Storage temperature -40 ～ 75 ℃ (-68 ~ + 199F)
Relative humidity 5%～95% (No condensation)
Trouble-free period MTBF An average of 100,000 hours trouble-free time to work
