Product Specification

Overview

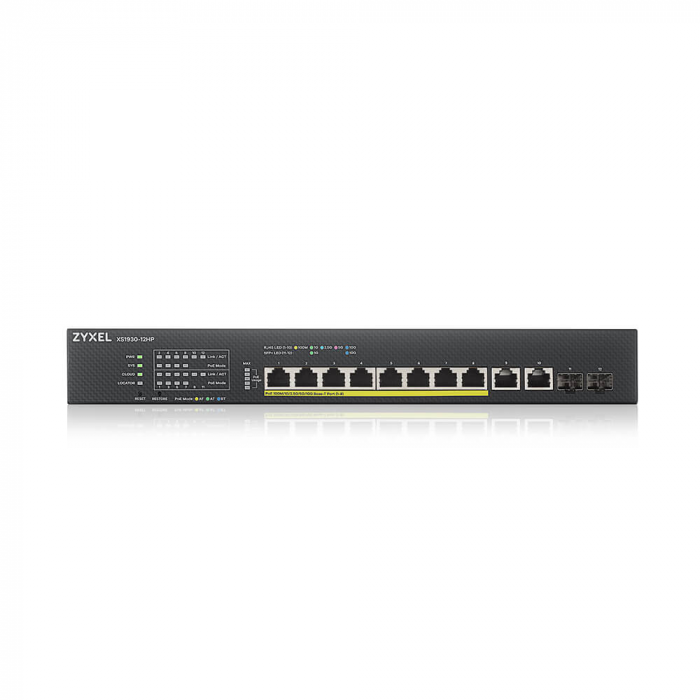

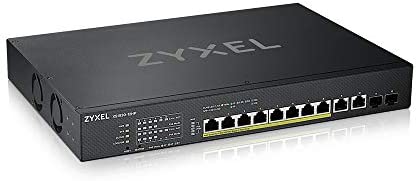

Zyxel XS1930-12HP L2 Managed POE Switch 8 Port ความเร็ว Multi-Gig (100M, 1G, 2.5G, 5G, 10G) , 2-Port SFP+ ความเร็ว 10Gbps POE 375W

Product name

8-port Multi-Gigabit Smart Managed Switch with 2 SFP+ Uplink

Switch class

Smart Managed

Total port count

12

100M/1G/2.5G/5G/10G Ethernet (RJ-45)

10

10-Gigabit SFP+

2

PoE ports

2

Total PoE budget (watts)

8

IEEE 802.3bt (PoE++)

375

Switching capacity (Gbps)

Forwarding rate (Mpps)

Packet buffer (byte)

2 MB

MAC address table

16 K

L3 forwarding tab

Max. 512 IPv4 entries;
Max. 512 IPv6 entries

Routing table

32

IP interface

32/32

Flash/RAM

32 MB/256 MB

Input

100 – 240 V AC, 50/60 Hz

Max. power consumption (watt)

493

Item

Dimensions (WxDxH)(mm/in.):
330 x 230 x 44/12.99 x 9.06 x 1.73
Weight (kg/lb.): 2.8/6.1

Packing

Dimensions (WxDxH)(mm/in.):
484 x 337 x 79/19.06 x 13.27 x 3.11
Weight (kg/lb.): 4.0/8.82

Included accessories

Power cord
Rack mounting kit

Operating

Temperature -20°C to 50°C/-4°F to 122°F
Humidity 5% to 95% (non-condensing)

Storage

Temperature -40°C to 70°C/-40°F to 158°F
Humidity 5% to 95% (non-condensing)

MTBF (hr)

Heat dissipation (BTU/hr)

Acoustic noise (min/max, dBA)

28.3/50.8
