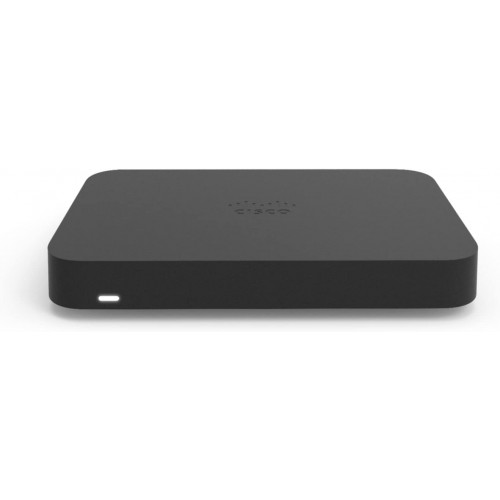

Cisco Meraki Z3 Cloud Managed Teleworker Gateway รุ่น Z3-HW
MANUFACTURER: Cisco Meraki
P/N: Z3-HW
Description
- Interfaces
- WAN: 1 × 1 GbE
- LAN: 4 × 1 GbE
- PoE: 1 × 802.3af PoE enabled port
- USB: 1 × USB 2.0 (for 3G/4G failover)
- Network and Security Services
- Stateful firewall, 1:1 NAT, DMZ
- Auto VPN™ self-configuring site-to-site VPN
- Client VPN (IPSec L2TP), limit 2 authorized users (with Meraki-hosted authentication only)
- VLAN and DHCP services
- 802.1x wired port authentication
- Static routing
- User and device quarantine
- Integrated Wireless
- 4 SSIDs
- 2 × 802.11a/b/g/n/ac (2.4Ghz or 5 Ghz), 2×2 MU-MIMO with 2 spatial streams
- Max data rate 1.3 Gbit/s
- 4 × interal dipole antennas (gain: 3 dBi @ 2.4 GHz, 4 dBi @ 5 GHz)
- WPA2-PSK authentication
- Regulatory: FCC (US), IC (Canada), C-Tick (Australia / New Zealand), RoHS
- Monitoring and Reporting
- Throughput, connectivity monitoring, and email alerts
- Detailed historical per-port and per-client usage statistics
- Application usage statistics
- Org-level change logs for compliance and change management
- VPN tunnel and latency monitoring
- Network asset discovery and user identification
- Periodic emails with key utilization metrics
- Syslog integration
- Remote Diagnostics
- Live remote packet capture
- Real-time diagnostic and troubleshooting over the web
- Aggregated event logs with instant search
- WAN Performance Management
- Automatic Layer 3 failover (including VPN connections)
- Application level (Layer 7) traffic analysis and shaping
